Series 422

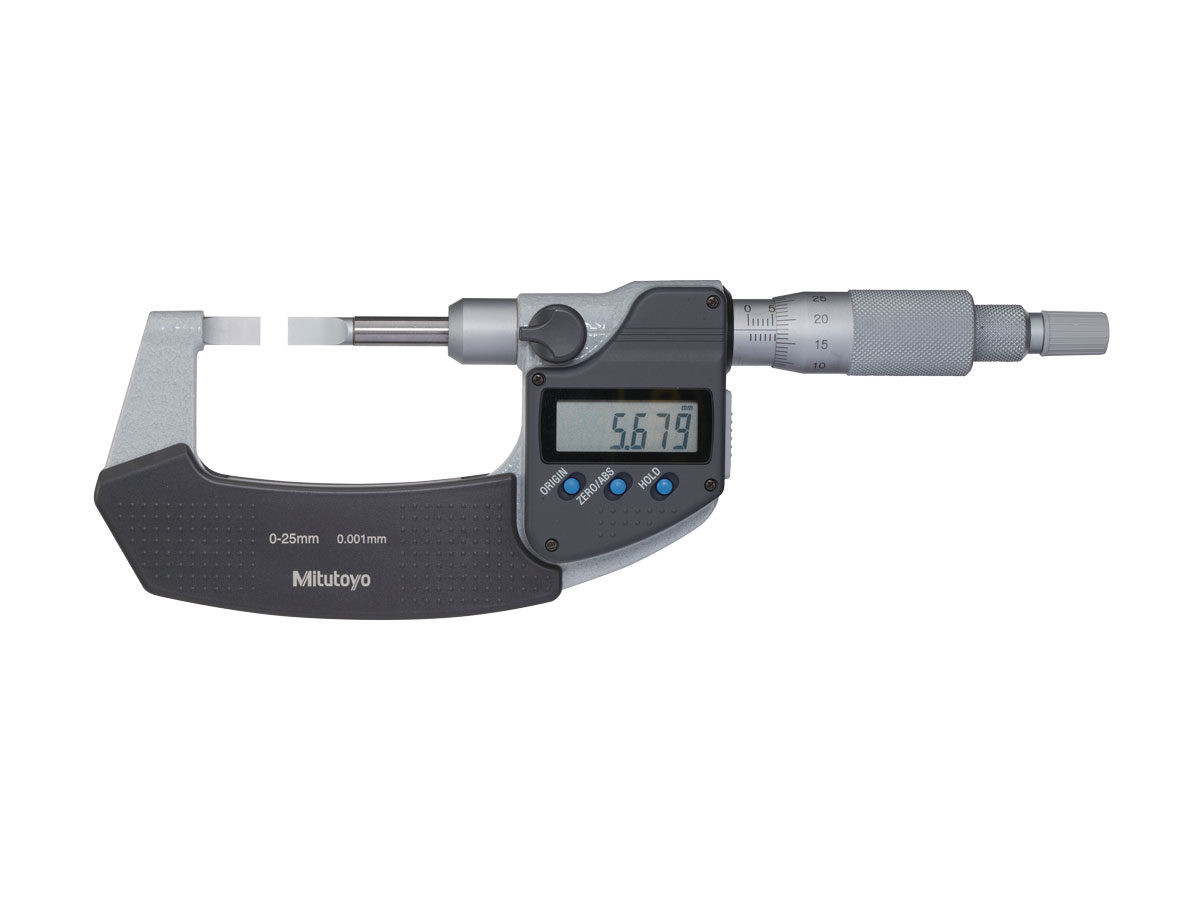

Blade Micrometer-Non-Rotating Spindle

The Digimatic non-rotating spindle type blade micrometer quickly measures grooves, keyways and hard-to-reach areas with high accuracy.

Features

The Mitutoyo Digimatic blade micrometer uses a blade anvil and spindle to measure difficult features such as groove diameters on shafts and keyways. A non-rotating spindle minimizes torsion on softer parts to prevent deformation and wear, while a ratchet-stop mechanism applies uniform measuring force. Readings are shown on a large, easy-to-read LCD.

Available in Metric and Inch/Metric models
Ratchet thimble enables easy single-hand measurements
ABSOLUTE (ABS) linear scale—no origin reset required at power-on
Eliminates overspeed errors for reliable, repeatable results
SPC data output for quick, real-time data management
Functions: Origin Set, Zero/ABS, Data Hold, Data Output, Function Lock, inch/mm conversion (inch/metric models only)
Alarms: Low Voltage; Counting Value Composition Error
Knurled friction thimbles for quick adjustments, even with gloves
Satin-chrome sleeve and laser-etched thimble scale for easier reading
Non-slip frame finish for better grip in shop environments
Supplied in a fitted plastic case
IP54 protection resists debris, dust, and water splash

Blade Micrometer Demo

Blade Micrometer-Non-Rotating Spindle

Double click on above image to view full picture

More Views

Availability: In stock

SKU	SPC output	Range	Resolution	Accuracy	Mass	Graduation	parallelism	Price
422-230-32	Yes	0-25mm	0.001mm	±3µm	365g	0.01mm	3µm or less	$1,010.00
422-231-30	Yes	25-50mm	0.001mm	±3µm	565g	0.01mm	3µm or less	$1,080.00
422-232-30	Yes	50-75mm	0.001mm	±3µm	465g	0.01mm	3µm or less	$1,140.00
422-233-30	Yes	75-100mm	0.001mm	±4µm	580g	0.01mm	4µm or less	$1,190.00
422-260-30	Yes	0-25mm	0.001mm	±3µm	365g	0.01mm	3µm or less	$1,040.00
422-261-32	Yes	25-50mm	0.001mm	±3µm	565g	0.01mm	3µm or less	$1,110.00
422-270-30	Yes	0-25mm	0.001mm	±3µm	365g	0.01mm	3µm or less	$1,080.00
422-271-30	Yes	0-25mm	0.001mm	±3µm	365g	0.01mm	3µm or less	$1,080.00
422-330-30	Yes	0-1" / 0-25.4mm	0.00005" / 0.001mm	±0.00015" / ±3µm	365g	0.0010" / 0.01mm	0.00015" or less / 3µm or less	$1,010.00
422-331-32	Yes	1-2" / 25.4-50.8mm	0.00005" / 0.001mm	±0.00015" / ±3µm	565g	0.0010" / 0.01mm	0.00015" or less / 3µm or less	$1,080.00
422-332-32	Yes	2-3" / 50.8-76.2mm	0.00005" / 0.001mm	±0.00015" / ±3µm	465g	0.0010" / 0.01mm	0.00015" or less / 3µm or less	$1,140.00
422-333-32	Yes	3-4" / 76.2-101.6mm	0.00005" / 0.001mm	±0.00020" / ±4µm	580g	0.0010" / 0.01mm	0.00020" or less / 4µm or less	$1,190.00
422-360-30	Yes	0-1" / 0-25.4mm	0.00005" / 0.001mm	±0.00015" / ±3µm	365g	0.0010" / 0.01mm	0.00015" or less / 3µm or less	$1,040.00
422-361-32	Yes	1-2" / 25.4-50.8mm	0.00005" / 0.001mm	±0.00015" / ±3µm	565g	0.0010" / 0.01mm	0.00015" or less / 3µm or less	$1,110.00
422-370-32	Yes	0-1" / 0-25.4mm	0.00005" / 0.001mm	±0.00015" / ±3µm	365g	0.0010" / 0.01mm	0.00015" or less / 3µm or less	$1,080.00
422-371-32	Yes	0-1" / 0-25.4mm	0.00005" / 0.001mm	±0.00015" / ±3µm	365g	0.0010" / 0.01mm	0.00015" or less / 3µm or less	$1,080.00

Product Description

Technical Data
Technical Data
Technology:	Digimatic
Application:	Groove/keyway and hard-to-reach feature measurement
Spindle Type:	Non-rotating spindle (torsion-free contact)
Protection:	IP54 (dust/splash resistant)
SPC Output:	Yes
Scale System:	ABSOLUTE electrostatic capacitance type (no origin reset; no overspeed errors)
Ratchet/Thimble:	Ratchet Stop; knurled friction thimble for quick adjustments
Display:	LCD
Functions:	Origin Set, Zero/ABS, Data Hold, Data Output, Function Lock, inch/mm conversion (on in/mm models)
Alarm:	Low Voltage; Counting Value Composition Error
Finish:	Satin-chrome sleeve; laser-etched thimble; non-slip frame
Models:	Metric; Inch/Metric
Battery:	SR44 (1 pc.) 938882
Battery Life:	Approx. 2.4 years under normal use
Optional Accessories:	05CZA662, 05CZA663
Included:	Fitted plastic case

Additional Information

Name	Blade Micrometer-Non-Rotating Spindle
SKU	Blade Micrometer-Non-Rotating Spindle
Manufacturer	Mitutoyo
SPC output	Yes
