Pana Micrometers

Series 116

Pana Micrometers

The Mitutoyo Pana micrometers deliver exceptional versatility with a non-rotating spindle and up to seven interchangeable anvils (flat, spline, spherical, point, knife-edge, disk, blade) to cover a wide range of OD applications. Available in inch or metric.

Features
  • Seven optional anvils: flat, spline, spherical, point, knife-edge, disk, blade
  • Non-rotating spindle reduces torsion for consistent, repeatable readings
  • Ratchet stop applies constant force; knurled thimbles for quick adjustment
  • Carbide measuring faces for durability and flatness
  • Clear scales: satin-chrome sleeve & laser-etched thimble
  • Robust frame with baked-enamel finish
  • Includes standard bar (except 0–25 mm / 0–1" models); supplied in fitted case
  • Optional thread kit: V-anvils & conical spindle tips for screw thread measurement

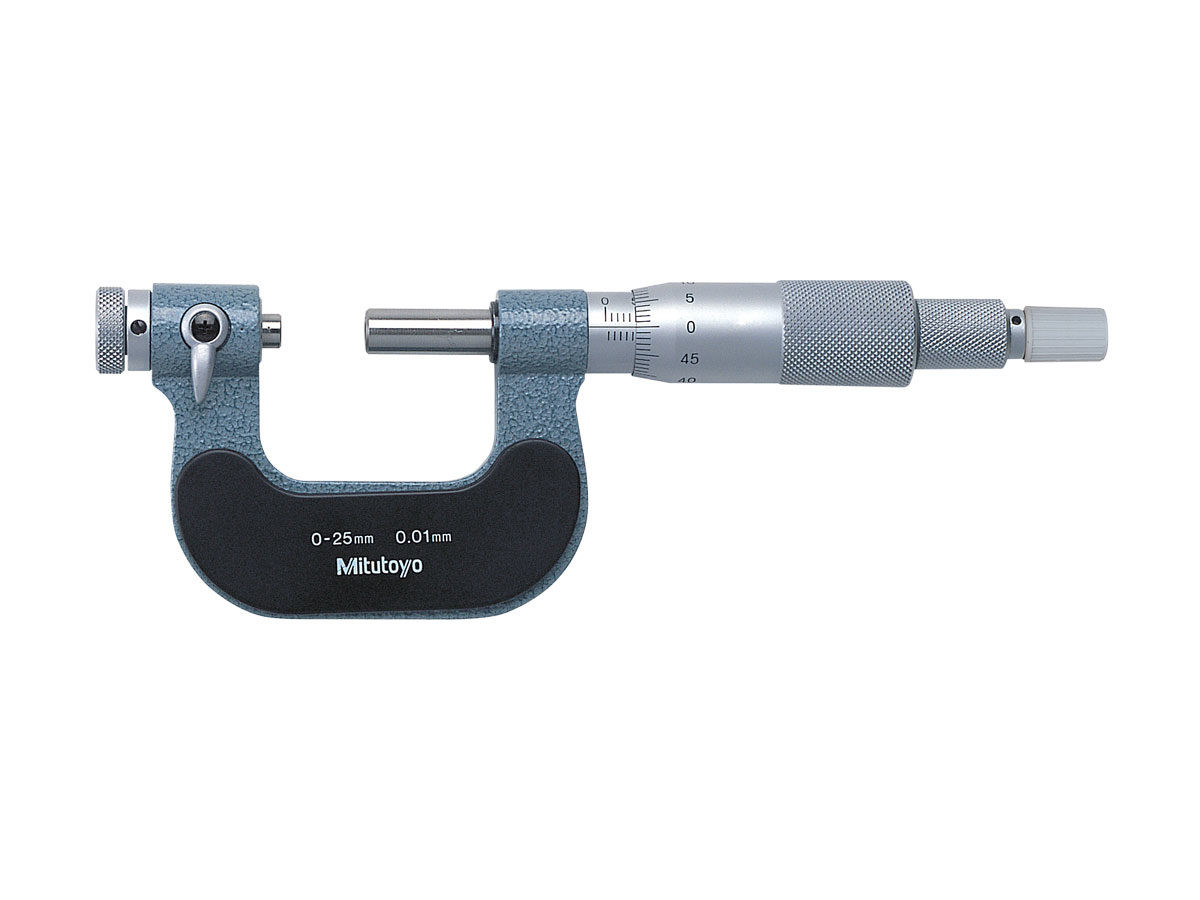

Pana Micrometers

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Availability: In stock

SKU Range Accuracy Graduation Price Qty
116-106-10 1-2" ±.0002" .001"
$750.00

Product Description

Technical Data
Technical Data
Series:116
Technology:Mechanical
Units:Inch / Metric (model dependent)
SPC Output:No
Spindle:Non-rotating
Ratchet/Thimble:Ratchet Stop; knurled friction thimbles
Measuring Faces:Carbide tipped
Interchangeable Anvils:Flat, Spline, Spherical, Point, Knife-edge, Disk, Blade
Thread Measurement (optional):V-anvils & conical spindle tips
Finish:Satin-chrome sleeve; laser-etched thimble
Frame:Baked-enamel finish
Included:Standard bar (except 0–25 mm / 0–1"); fitted plastic case
Optional Accessories:116-800, 116-830

Additional Information

Name Pana Micrometers
SKU Pana Micrometers
Manufacturer Mitutoyo
