Product Description
| Technical Data | |
|---|---|
| Technology: | Digimatic |
| Range: | Metric: 0–5 mm | Inch/Metric: 0–12.7 mm / 0–0.5" |
| Selectable Resolution: | Yes (model-dependent) |
| Accuracy: | Up to ±0.003 mm / ±0.00012" (model-dependent) |
| Display: | Rotatable LCD (up to 180°) |
| Body Width: | 35 mm slim body for tight spaces |
| Length Standard: | ABSOLUTE electrostatic capacitance type linear encoder |
| Max Response Speed: | Unlimited |
| Functions: | Zero-setting, Presetting, Counting direction switching, Tolerance judgment, Display hold, Resolution switching, Data output, Inch/mm conversion (on inch/metric models) |
| SPC Output: | Yes |
| External Signal / Connector: | Signal output capable; waterproof data output connector (dust/water/oil resistant) |
| IP Rating: | IP66 |
| Battery: | SR44 (1 pc.) 938882 |
| Battery Life: | Approx. 7000 hours under normal use |
| Alarms: | Low voltage; Counting value composition error; Overflow error; Tolerance limit setting error |
| Included: | Fitted plastic case |
| Units / Models: | Metric; Inch/Metric |
Additional Information

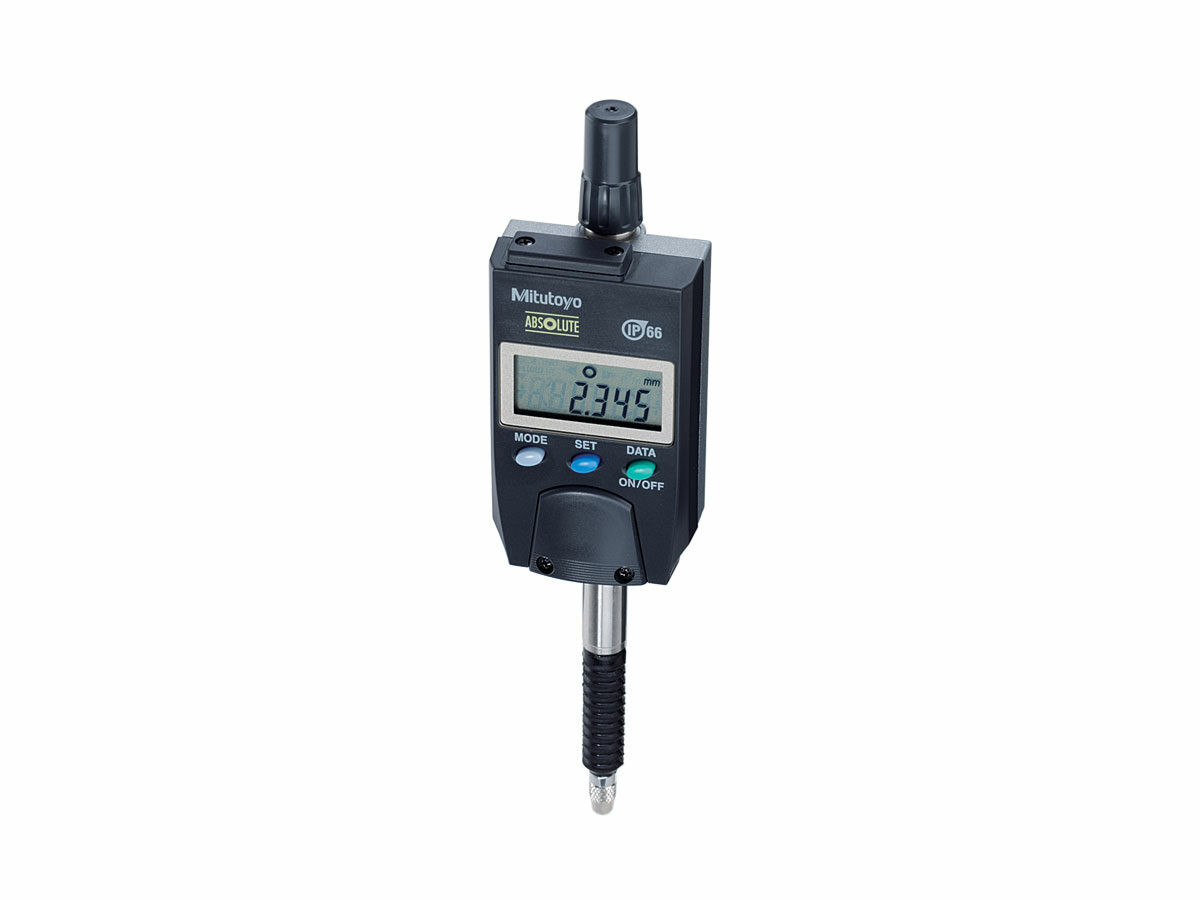

| Name | ABSOLUTE Digimatic Indicator ID-N |
|---|---|
| SKU | ABSOLUTE Digimatic Indicator ID-N |
| Manufacturer | Mitutoyo |
| SPC output | Yes |
