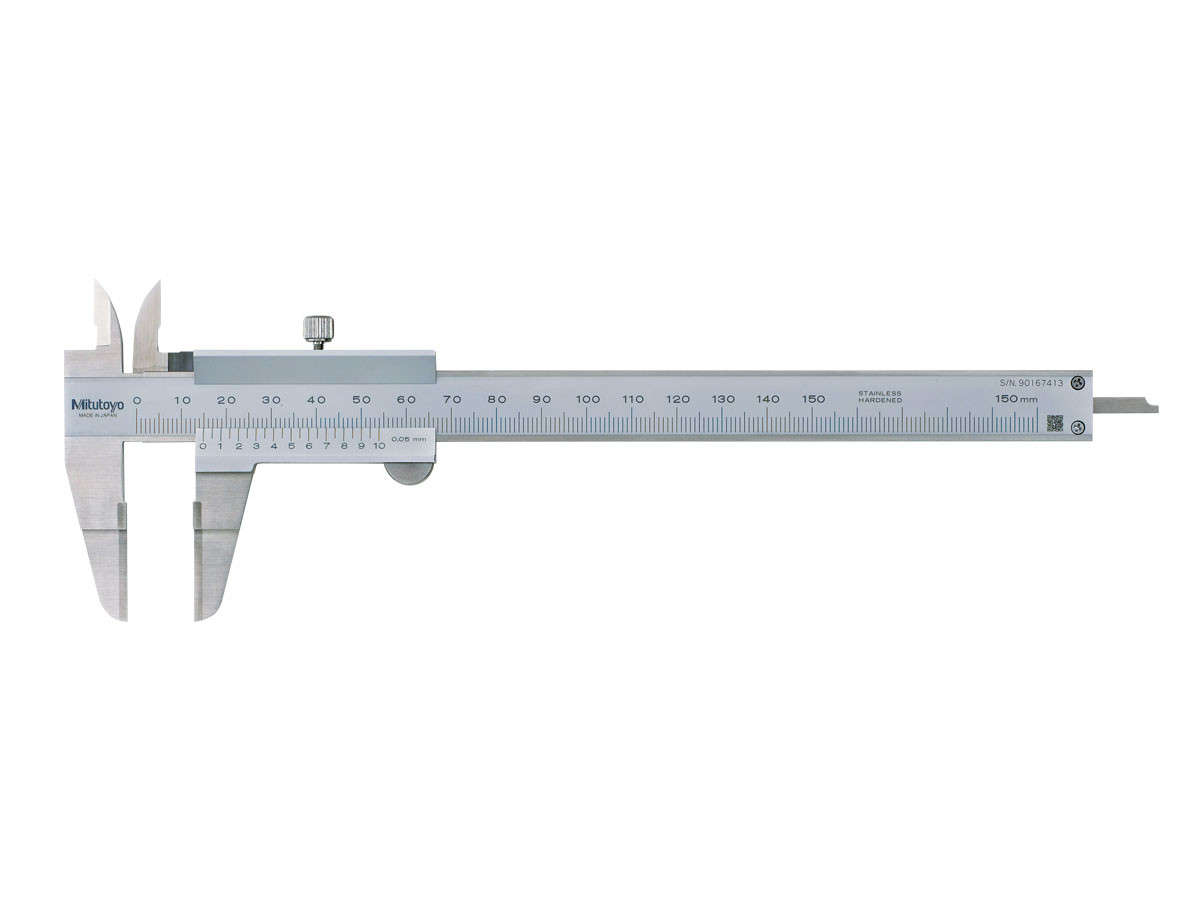

Vernier Blade Type Caliper

Vernier

Vernier Blade-Type Caliper

The Mitutoyo Vernier Blade-Type caliper uses thin blade-style jaws that fit into and measure very small grooves and tracks with high accuracy.

Features

Blade-style jaws reach into very small grooves and tracks for precise OD/ID checks
Depth bar enables quick, accurate step measurements
Carbide-tipped jaws improve accuracy and durability
Raised sliding surfaces protect graduation marks from wear
Hardened, corrosion-resistant stainless steel with satin chrome finish for easy reading
Lock screw securely holds the sliding jaw to record measurements
Available in Metric models; supplied in a fitted plastic case

Vernier Blade Type Caliper

Double click on above image to view full picture

Availability: In stock

Technical Data

Vernier Blade-Type Caliper — Technical Data
Technology:	Mechanical (Vernier)
Units:	Metric
Graduation:	0.05 mm
SPC Output:	No
Measurement Modes:	Outside, Inside, Step (via depth bar)
Jaws:	Thin blade-type; carbide-tipped
Body / Finish:	Hardened stainless steel; satin chrome
Scale Protection:	Raised sliding surfaces reduce wear of graduations
Lock Screw:	Yes — holds sliding jaw position
Included Case:	Fitted plastic case
