“Uni-Mike”-Friction Thimble

Series 117

“Uni-Mike” – Friction Thimble

The Mitutoyo Series 117 Uni-Mike provides versatile measurement capability with interchangeable anvils for tubes, rivet head heights, and shoulder-edge distances. Inch models include a friction thimble for constant measuring force and repeatability.

Features
  • Clamp accepts multiple interchangeable anvils
  • Measures tube thickness, rivet head heights, shoulder edges
  • Inch models: friction thimble with constant force
  • Supplied with flat anvil and rod anvil
  • Carbide-tipped faces for durability and accuracy
  • Knurled friction thimbles allow adjustments even with gloves
  • Satin chrome sleeve; laser-etched thimble markings
  • Durable baked enamel frame finish
  • Includes Certificate of Inspection; fitted plastic case

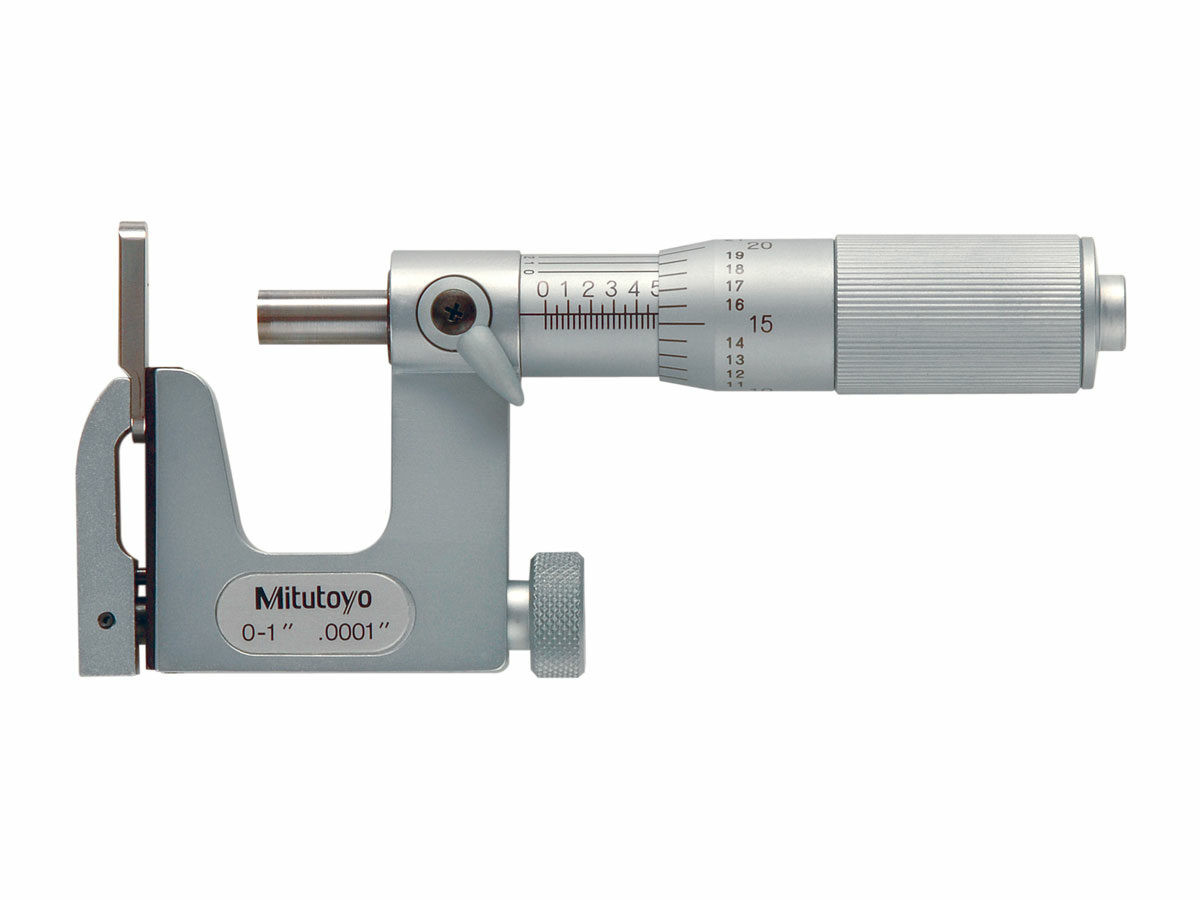

“Uni-Mike”-Friction Thimble

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Availability: In stock

SKU Range Mass Price Qty
117-107 — —
$295.00
117-108 — —
$316.00

Product Description

Technical Data
Technical Data
Series:117
Technology:Mechanical
Units:Inch
Application:Tubes, rivet heads, shoulder-edge distances
Included Anvils:Flat anvil, Rod anvil (other anvils optional)
Accuracy:±0.00020"
Graduation:0.0001"
Parallelism:0.00012" or less
Measuring Faces:Carbide tipped (spindle only)
Ratchet / Thimble:Friction Thimble
SPC Output:No
Finish:Satin chrome sleeve; Baked enamel frame
Included:Certificate of Inspection; Plastic fitted case

Additional Information

Name “Uni-Mike”-Friction Thimble
SKU “Uni-Mike”-Friction Thimble
Manufacturer Mitutoyo
