Outside Micrometer-Inch

Series 101

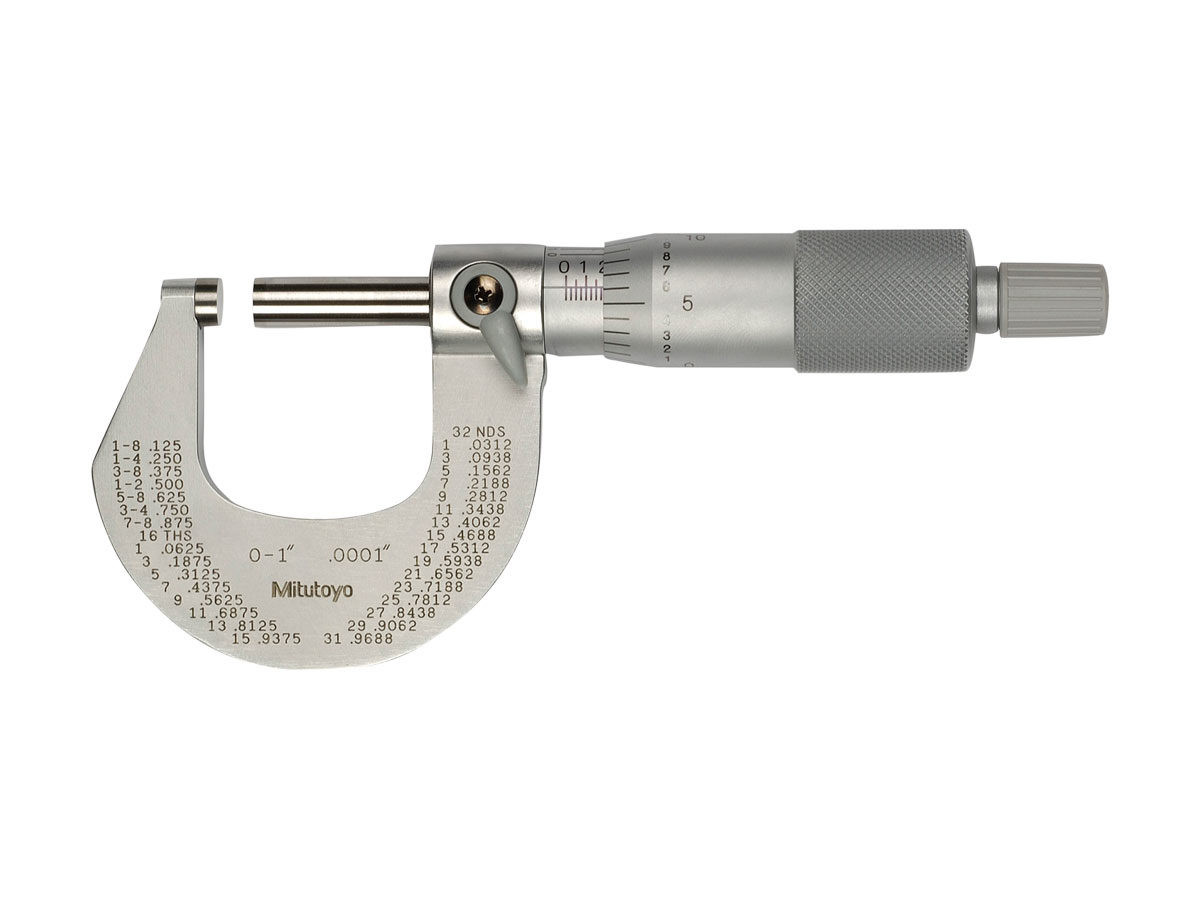

Outside Micrometer-Inch

The Mitutoyo outside micrometer with a tapered frame is able to measure in tight spaces and narrow slots. Available with a ratchet-stop or friction thimble.

Features

The Mitutoyo 101 series outside micrometer is ideal for measuring in tight spaces and narrow slots attributed to the taper of its frame on the anvil side. Available with a ratchet-stop mechanism or friction thimble for smooth, uniform pressure on a workpiece making it precise, repeatable measurements easier. The frame has a satin chrome finish for durability, and measurements are laser etched for easier reading.

  • Carbide facing on the spindle and anvil resists wear to keep surfaces flatter with longer accuracy
  • A spindle lock provides secure locking of the measurement position
  • Measurements are laser etched on thimble for faster, easier readings
  • Conversion charts are laser etched on the frame
  • Satin chrome finish helps resist rust and reduces glare
  • Includes a standard bar except for 0-1” models
  • Supplied in fitted plastic case
How to - Use a Vernier Micrometer

How to - Use a Vernier Micrometer

Outside Micrometer-Inch

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Availability: Out of stock

SKU Accuracy Ratchet/Thimble Mass parallelism Price


Product Description

Technical Data
Technical Data
Technology:Mechanical
Units:Inch
Ratchet/Thimble:Ratchet Stop or Friction Thimble (model-dependent)
Graduation:0.0001"
Measuring Faces:Carbide tipped
SPC Output:No
Included:Standard bar (except 0–1″ models); fitted plastic case
Finish/Markings:Satin chrome frame; laser-etched thimble graduations & frame conversion chart
Lock:Spindle lock

Additional Information

Name Outside Micrometer-Inch
SKU Outside Micrometer-Inch
Manufacturer Mitutoyo
