Mitutoyo Reseller Resources

The following pages/links include some of the products we manufacture for Mitutoyo.

The images and the downloadable image files are approved for use in online and print publications by Mitutoyo Worldwide and their representatives.

MIG Family of
Multiplexer and Interfaces

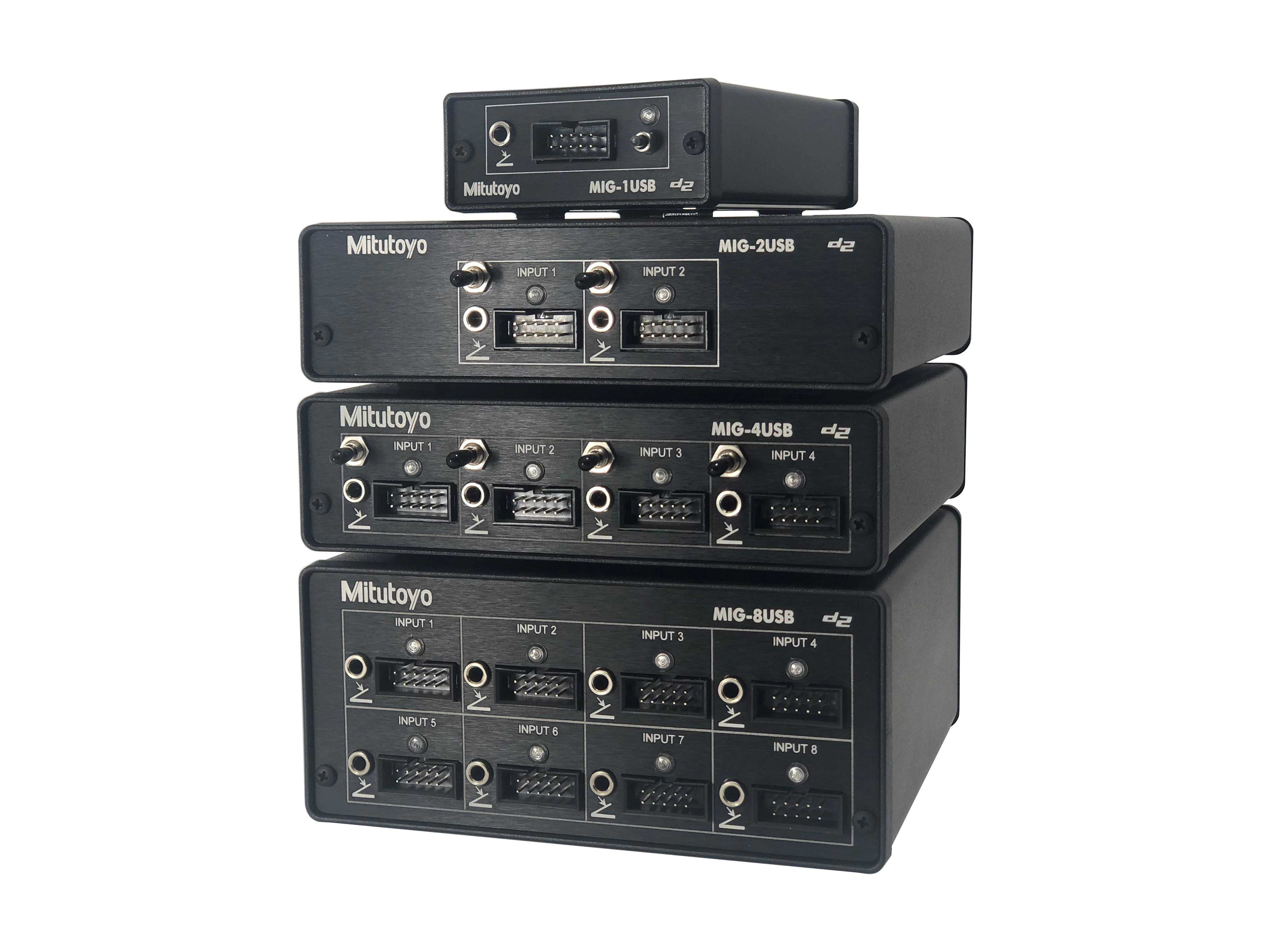

Mitutoyo MIG family

Click for more images
and model specific info
MIG-1USB Single digimatic input, USB output interface.  Includes data send button and data send input jack (3.5mm), LED flashes on data send.  Power is supplied by USB port
MIG-2USB 2 Input interface (digimatic and serial), USB and Serial output.  Includes data send button and 3.5mm input jack for each port, LED indicates data sending.  Supplied with wallpack power supply
MIG-4USB 4 Input interface (digimatic and serial), USB and Serial output.  Includes data send button and 3.5mm input jack for each port, LED indicates data sending.  Supplied with wallpack power supply
MIG-8USB 8 Input interface (digimatic and serial), USB and Serial output.  Includes data send button and 3.5mm input jack for each port, LED indicates data sending.  Supplied with wallpack power supply

FlexWedge for
Quadrature Devices Interface and Multiplexer

 Mitutoyo MIG family

Click for images and
more info



FW-Quad1

Single input port for Quadrature signal.  Sinewave and Squarewave, USB output interface for both HID and VCP.  Includes data send button and data send input jack 2.5/3.5mm, LED flashes on data send.  Power is pulled from USB port
FW-Quad3

Three input ports for Quadrature signal.  Sinewave and Squarewave, USB output interface for both HID and VCP.  Includes data send button and data send input jack 2.5/3.5mm, LED flashes on data send.  Power is pulled from USB port





Digimatic Extension Cable 10 pin to 10 pin M/FF

Digimatic extension cable

Click to download image



Digimatic Extension Cable

Extension cable with Male/Female 10 pin connectors.  Used to extend data signal cable of all digimatic devices.  (Additional lengths are available to order)

  6ft long = MTI # 64AAB645

10ft long = MTI # 64AAB646





Mitutoyo FlexConnect Power Adapter with Footswitch Jack

 MTI #64AAB647

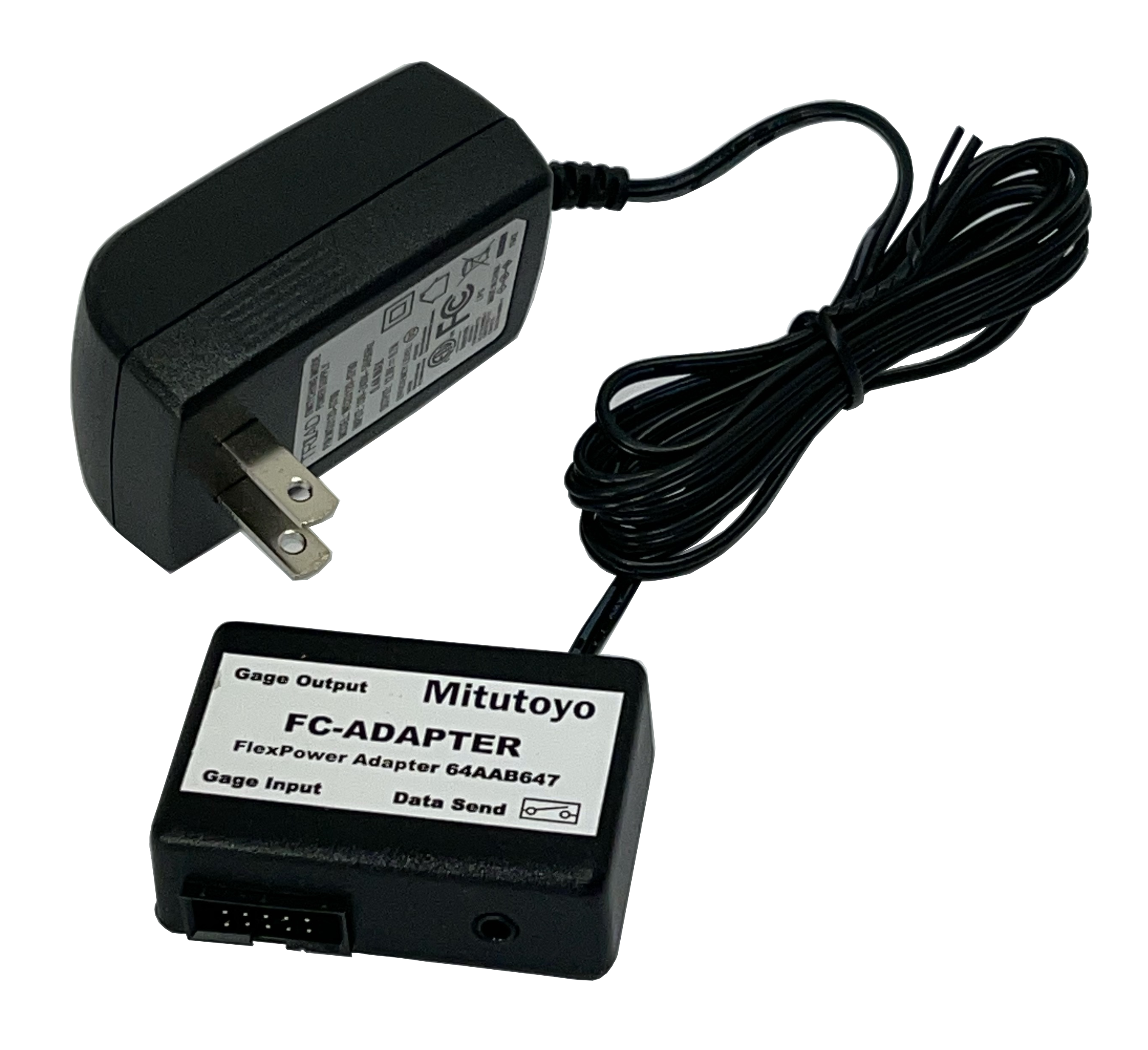

FlexPower for FlexConnect Cable

Click to download images



FlexConnect Power Adapter with Footswitch

Power adapter with Male/Male connectors used to supply power and allow connection
of FlexConnect cables and Mitutoyo wireless transmitters.
Footswitch jack and Data Send button enhance easy data transmission.

MTI # 64AAB647





Mitutoyo FlexConnect for connecting serial output devices and converting to Digimatic Ouput
with DB9F connector

FlexConnect Cable for Serial Devices with DB9F output

Click to download images



FlexConnect Serial Adapter with DB9

FlexConnect cable will connect to serial devices and convert the output to Digimatic code.  This output will allow connection to the Mitutoyo MIG and other brand interface devices.  Cable will autodetect signal or can be programmed to capture serial output.  Converting and sending the captured data required as the reading for the Digimatic output.

MTI # 64AA????





Mitutoyo FlexConnect for connecting serial output devices and converting to Digimatic Ouput
with DB25F connector

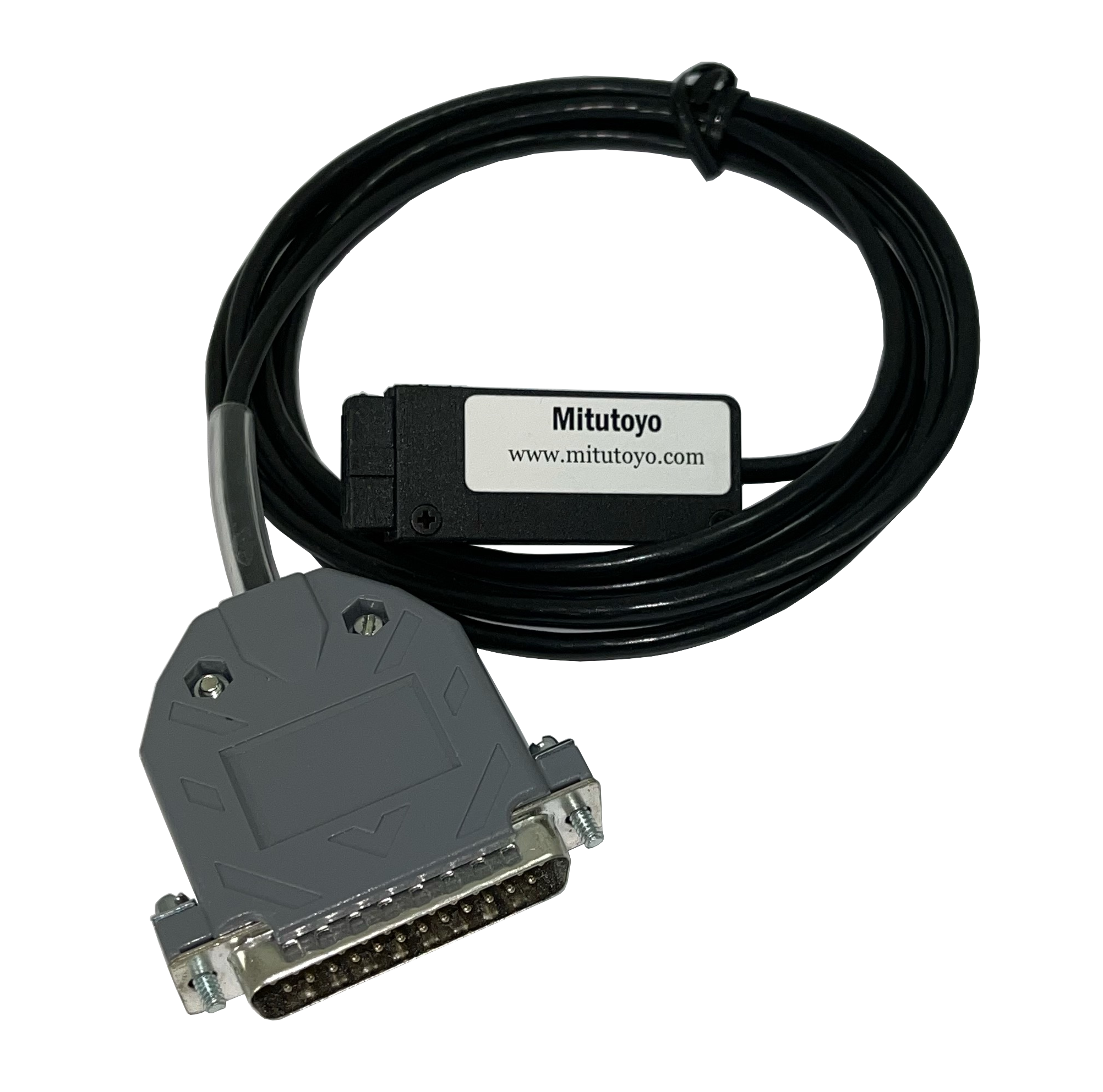

FlexConnect Cable for Serial Devices with DB25F output

Click to download images



FlexConnect Serial Adapter with DB25

FlexConnect cable will connect to serial devices and convert the output to Digimatic code.  This output will allow connection to the Mitutoyo MIG and other brand interface devices.  Cable will autodetect signal or can be programmed to capture serial output.  Converting and sending the captured data required as the reading for the Digimatic output.

MTI # 64AAB641





Mitutoyo FlexWedge Interface Connects Serial output devices with DB9F and converts to USB for Keyboard Emulation
and VCP Comport

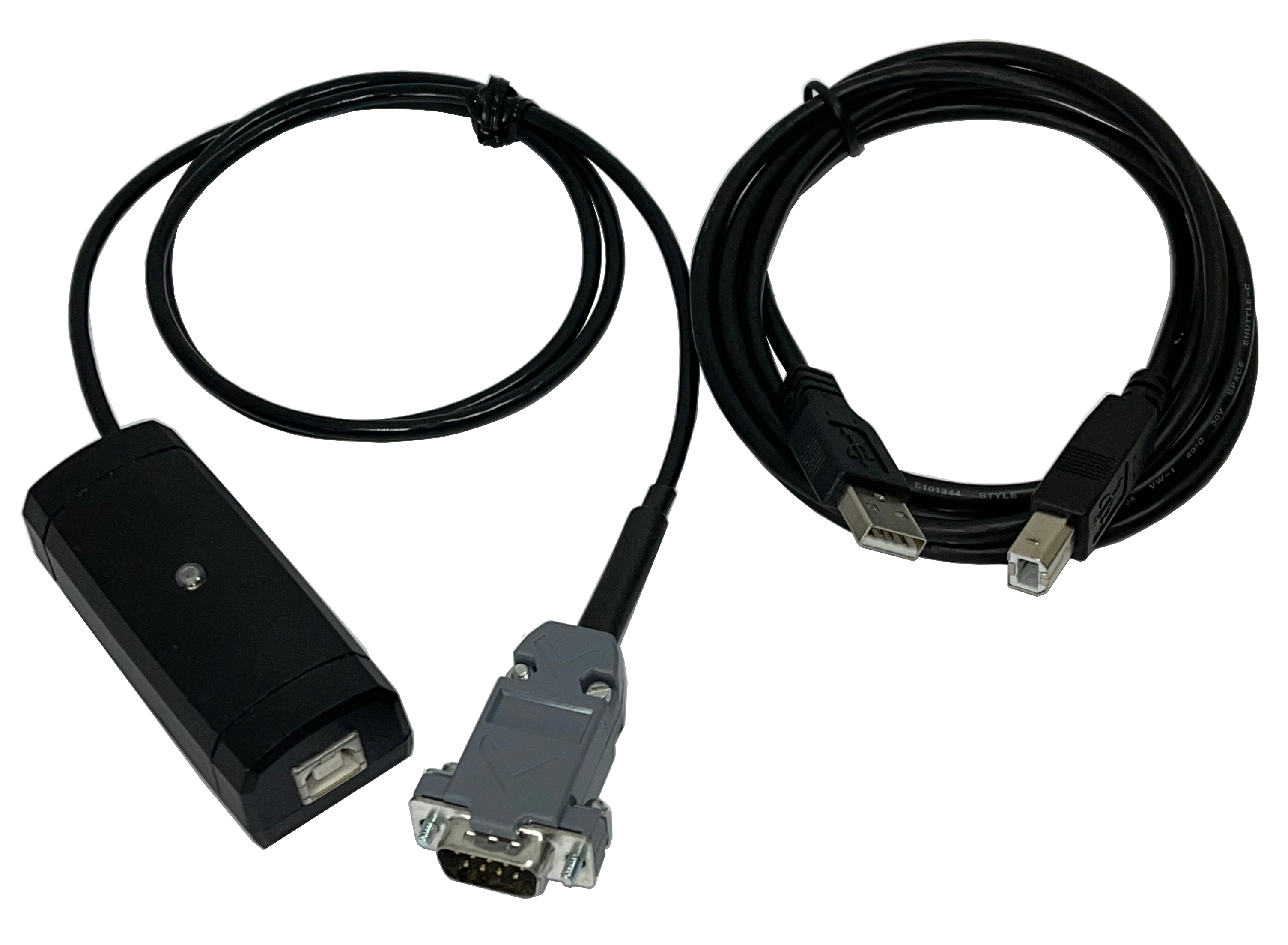

FlexWedge Interface for Serial Devices with DB9F

Click to download images



Mitutoyo FlexWedge Serial Interface to USB Keyboard/VCP connects to DB9F

Mitutoyo FlexWedge will connect to serial devices and convert to both USB Keyboard and USB VCP Comport.  This output will allow connection to serial devices and send to the computer like typed on a  keyboard or entered via serial comport for easy data entry.

Serial FlexWedge will autodetect serial string or can be programmed to capture serial output.  Converting and sending the captured data required as the reading for the USB output.

MTI # 64AAB642





Mitutoyo FlexWedge Interface Connects Serial output devices with DB25F and converts to USB for Keyboard Emulation
and VCP Comport

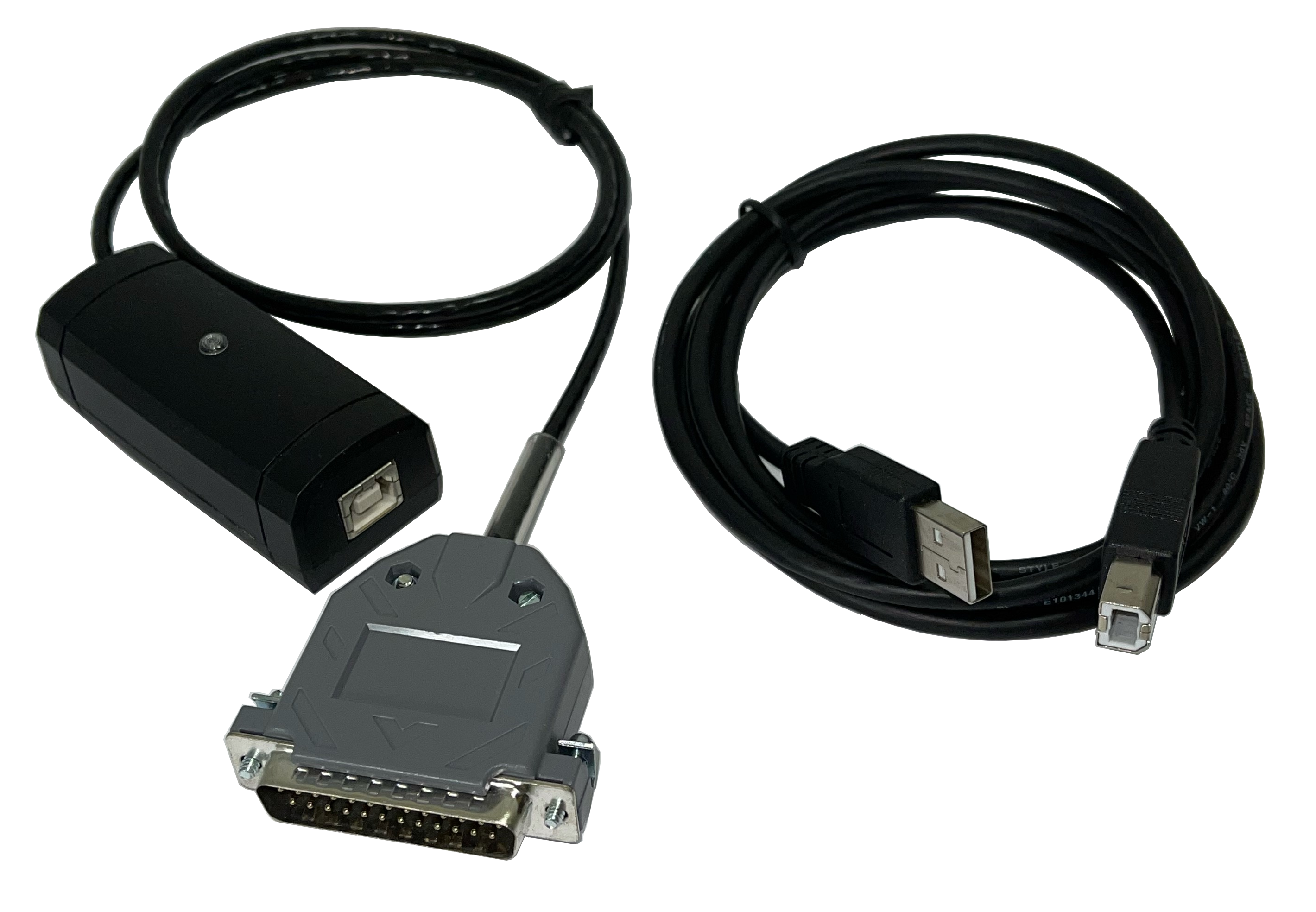

FlexWedge Interface for Serial Devices with DB25F output

Click to download images



Mitutoyo FlexWedge Serial Interface to USB Keyboard/VCP connects to DB25F

Mitutoyo FlexWedge will connect to serial devices and convert to both USB Keyboard and USB VCP Comport.  This output will allow connection to serial devices and send to the computer like typed on a  keyboard or entered via serial comport for easy data entry.

Serial FlexWedge will autodetect serial string or can be programmed to capture serial output.  Converting and sending the captured data required as the reading for the USB output.

MTI # 64AAB643





Mitutoyo HandSwitch for triggering data sending with 3.5mm jack

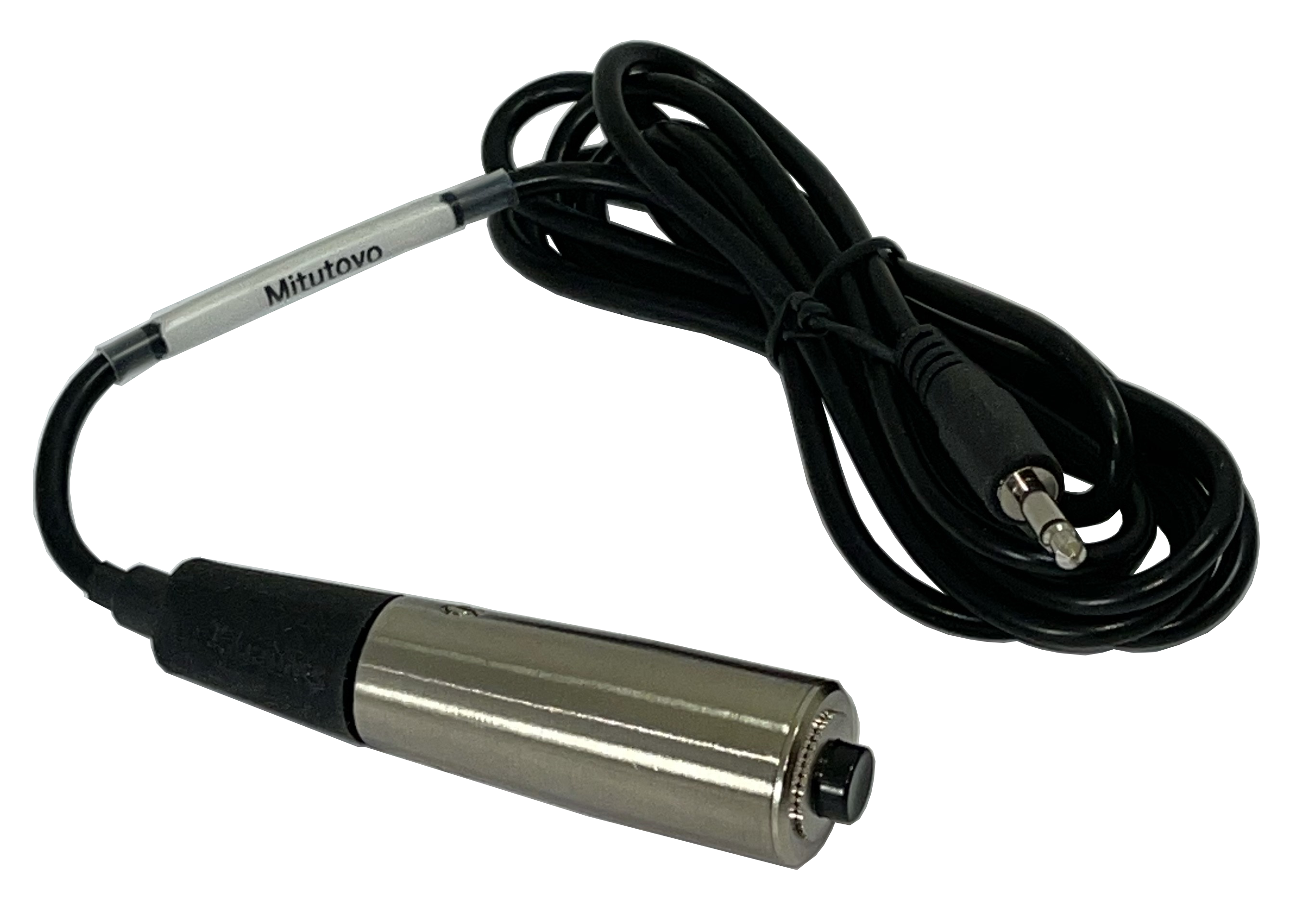

Mitutoyo Handswitch with 3.5mm jack

Click to download images



Mitutoyo Handswitch used to trigger data collection with 3.5mm jack

Mitutoyo Handswitch used to trigger data sending.  Metal pushbutton with 3.5mm jack.

MTI # 64AAB644
