Mitutoyo Reseller Resources - MIG Interfaces
The images and the downloadable image files are approved for use in online and print publications by Mitutoyo Worldwide and their representatives.
| Device Input | MIG Output | Certifications | Data send | |||||||||
| # of Inputs | Mitutoyo | Serial RS232 | USB | RS232 | Mitutoyo Digimatic | Pass-Thru Port | Daisy-chaining | Power Supply | CE/ROHS | Button | Jack | |
| MIG-1USB | 1 | Y | -- | HID/VCP | -- | D2 format | -- | -- | from USB port | Y | Push | 3.5mm |
| MIG-2USB | 2 | Y | Y | HID/VCP | RS232 DB9F | D2 format | Y | Y | Power Adapter | Y | Toggle | 3.5mm |
| MIG-4USB | 4 | Y | Y | HID/VCP | RS232 DB9F | D2 format | Y | Y | Power Adapter | Y | Toggle | 3.5mm |
| MIG-8USB | 8 | Y | Y | HID/VCP | RS232 DB9F | D2 format | Y | Y | Power Adapter | Y | -- | 3.5mm |
|
Descriptions and definitions: |
||||||||||||
| CE/RoHS | All units are CE marked and RoHS compliant. Certifications are available for download | |||||||||||
| Mitutoyo Digimatic |
This is the output signal format used in most digital hand tools. |
|||||||||||
| Pass-Thru Port | A DB9M connector on the unit. This is an input port for direct device input or used to stack/daisy-chain units together. This port can be used for direct connection to a serial device or can be used to connect MIG interfaces together to create a single output stream. The chain of interfaces can continue to enable up to 99 inputs to send to a single output port. | |||||||||||
| Daisy-chaining | The concept of connecting multiple interfaces together. Connecting units will create a 'single' interface with port/channel numbers being aligned so each port can be identified. This is also referred to as 'stacking' units. | |||||||||||
| Power Supply |
How each interface is powered. The single input pulls power from the USB port. MIG-2/4/8USB are supplied with a wall adapter. International orders are shipped with International Power Supplies that include multiple plugs/connectors matching different country outlets. 110-220volt input to 9vdc output |
|||||||||||
| Data Send |
Data can be requested by the interface. Push or Toggle button will trigger a reading request to be sent to the device. A 3.5mm RCA 'headphone' jack will accept a momentary closure to trigger a reading request to be sent to device. These can also be wired to a PLC for automated data collection. |
|||||||||||
| MIG-1USB | Single digimatic input, USB output interface. Includes data send button and data send input jack 3.5mm, LED flashes on data send. Power is pulled from USB port | |||||||||||
| MIG-2USB | 2 Input interface, digimatic and serial, USB output. Includes data send button and 3.5mm input jack for each input, and LED that flashes on data send. Unit includes power supply | |||||||||||
| MIG-4USB | 4 Input interface, digimatic and serial, USB output. Includes data send button and 3.5mm input jack for each input, and LED that flashes on data send. Unit includes power supply | |||||||||||
| MIG-8USB | 8 Input interface, digimatic and serial, USB output. Includes data send 3.5mm input jack for each input, and LED that flashes on data send. Unit includes power supply | |||||||||||
|

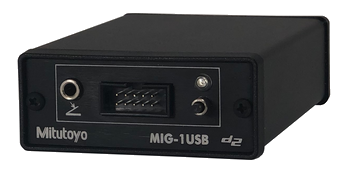

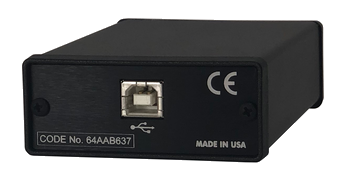

MIG-1USB
|

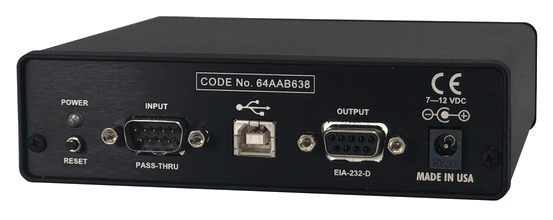

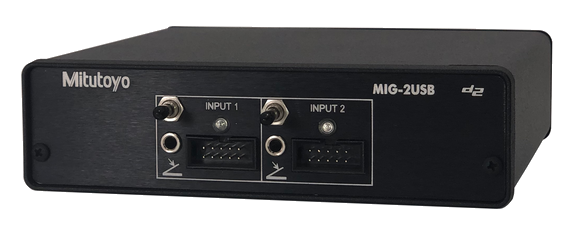

MIG-2USB |
|

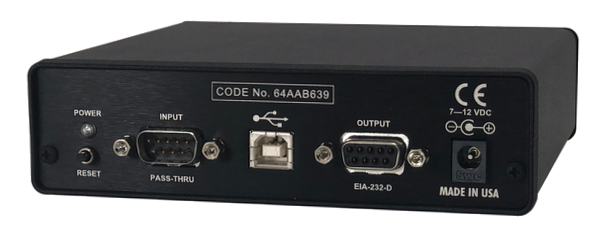

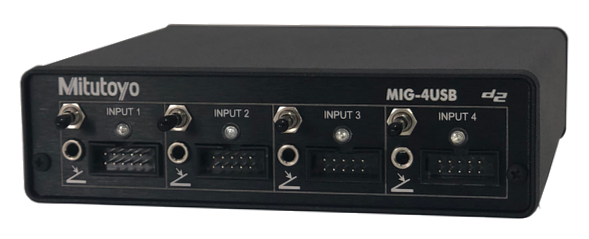

MIG-4USB
|

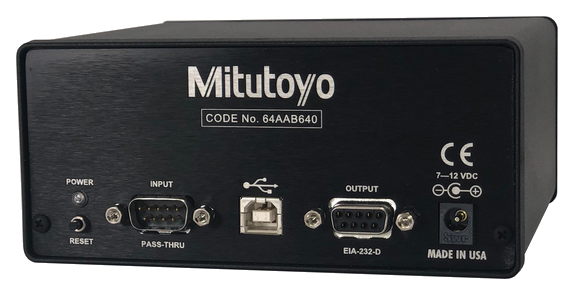

MIG-8USB
|
|

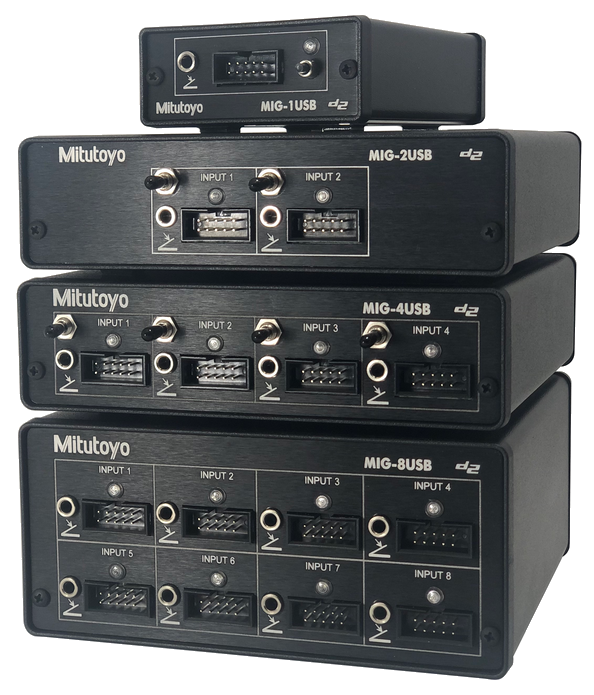

MIG-USB Family
|
|
