Product Description

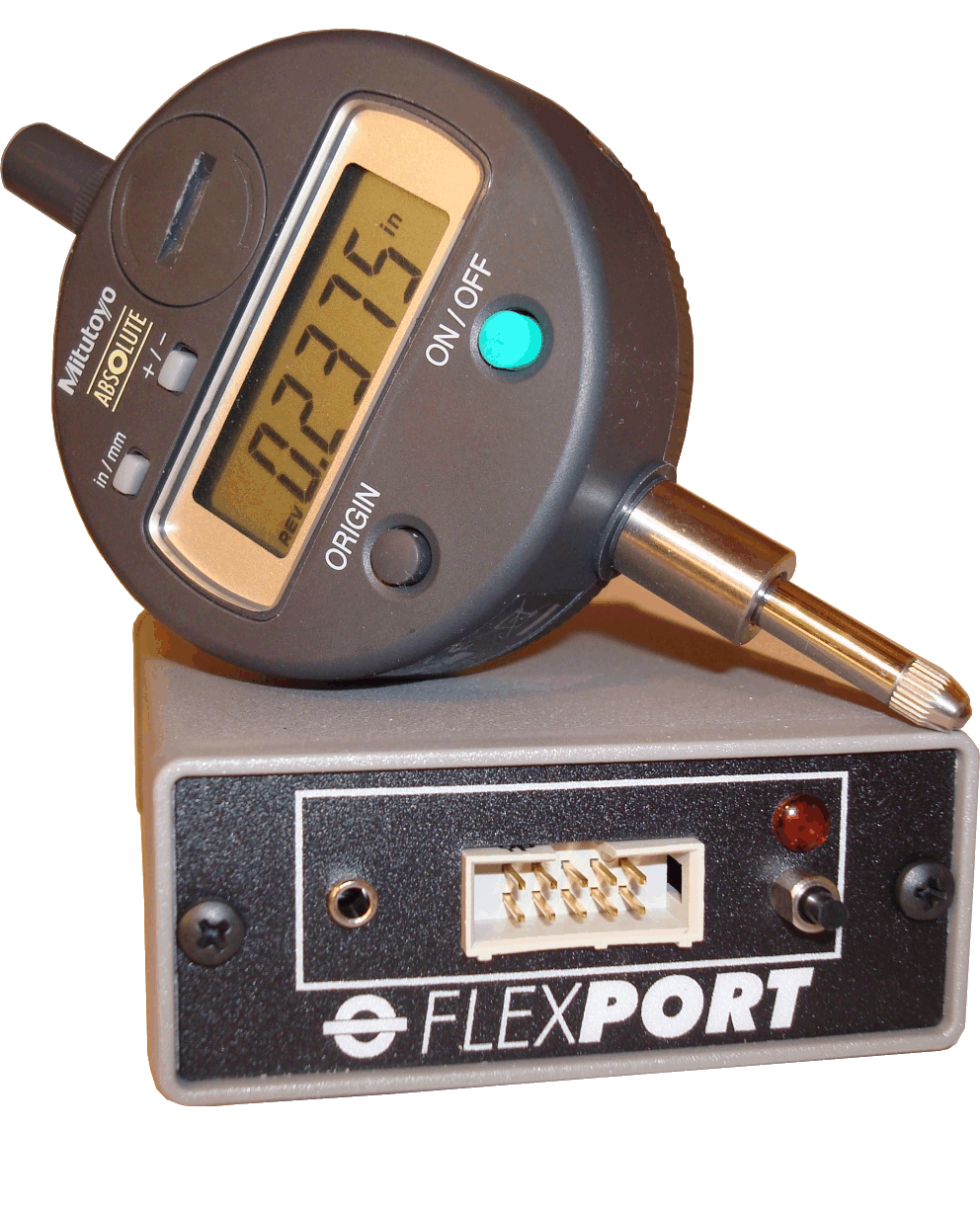

| Technical Data — FlexPort FP-1M | |
|---|---|
| Technology | Single-input gage interface to RS-232 |
| Input Type | Mitutoyo Digimatic / MTI-compatible via 10-pin front-panel connector |
| Output | RS-232 serial (DB9 female), standardized format supported by most SPC packages |
| Trigger Methods | Gage/cable Send · Front-panel Send · 2.5 mm contact-closure jack (hand/footswitch) · PC host commands |
| Status/Controls | Front-panel Send button; Data Send LED (lights on request; auto-off when sent) |
| Power | 7–9 VDC center-positive via included 110 V wall adapter |
| Optional Power | International Power Supply (EU/UK/AU/US adapters) available as an upgrade |
| USB Connectivity | Use optional RS-232→USB (Virtual COM Port) adapter to connect to modern PCs |
| Connectors | 10-pin Mitutoyo (input); 2.5 mm data-send jack; DB9 (RS-232) output |
| Included | FP-1M interface, wall adapter power supply, 6 ft RS-232 (DB9) cable |
| Typical Uses | Populate spreadsheets/DB/SPC with error-free readings; retrofit legacy serial workflows |
| SKU | FP-1M |
| Weight | Approx. 1 lb |
| Notes | International PSU and USB converter cable sold separately. |
Additional Information
| Name | FlexPort Single Input Gage Interface FP-1M |
|---|---|
| SKU | FP-1M |
| Weight (in lbs) | 1 |
| Manufacturer | Midwest FlexSystems Inc |
| Number of inputs | 1 Mitutoyo Only |
| Input type | Mitutoyo Only = Mitutoyo Digimatic and MTI Compatibles |
| Output type | Standard RS232 |
| Power Supply | 110v Wall Adapter 7-9VDC Center Positive |
| Gage Input Connector | 10-pin Male (Mitutoyo Digimatic) |
| Data Send Input | 2.5mm jack, data send button |
| Output Connector | DB9 Female |
