Product Description
Specialty, made-to-order visual indicator for FlexDisplay.

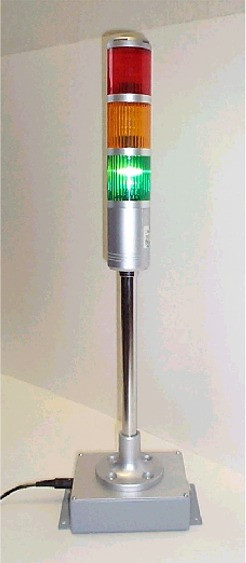

The FlexDisplay Light Bar mirrors pass/fail logic and other I/O-driven events from your FlexDisplay, giving operators unmistakable visual feedback. Use it to signal GO/NO-GO results based on programmed spec limits, or as a placement/sequence indicator during loading and checks. Connects directly to FlexDisplay DB15-HD I/O (TTL 5 V) and can also be driven by a PLC. Custom builds available to match your station, fixture, and wiring standards.
Custom Options (Built to Order)
- Form factor: overall length, number of segments, lens style
- LED scheme: color layout (e.g., green/amber/red), steady/flash patterns, escalation behavior
- Cabling & connectors: cable length, DB15-HD harness, quick-disconnect or pigtail to terminal block
- Mounting: brackets for panel/fixture, magnetic or T-slot hardware (per application)
- I/O mapping: per-channel status vs. master GO/NG, invert logic, blink on fault
- PLC integration: direct to PLC digital inputs; 12/24 V signaling achievable via external interface/relay (not included)
Tell us your fixture layout and signaling needs—we’ll configure the bar and harness to fit.
| Technical Data — FlexDisplay Light Bar (FD-LIGHT) | |
|---|---|
| Compatibility | FlexDisplay Remote Displays (FD series) |
| Primary Use | External visual alerts for GO/NO-GO and/or operator guidance (placement/sequence) |
| Controller I/O | DB15-HD on FlexDisplay; TTL 5 V level signals |
| PLC Integration | Works with PLC digital I/O; for 12/24 V signaling use an external interface/relay |
| Behavior | Steady or flashing; map per channel or master status (configurable) |
| Customization | Length/segments, LED colors, cable/connector, mounting, I/O mapping, blink logic |
| Environment | Shop-floor use; application-specific mounting options available |
| SKU | FD-LIGHT (specialty/custom) |
| Notes | Provide fixture dimensions and I/O requirements when ordering to ensure proper cable length and mapping. |
Additional Information
| Name | FlexDisplay Light Bar |
|---|---|
| SKU | FD-LIGHT |
| Weight (in lbs) | 5 |
| Manufacturer | Midwest FlexSystems Inc |
