CableWedge-USB

CW-USB

CableWedge Gage Interface to USB

Connect a single digital gage straight to USB and capture readings as either keyboard (HID) or virtual COM port (VCP). Plug-and-play for spreadsheets, powerful when you need advanced control.

Features
  • Dual-mode output: HID keyboard & USB VCP in one cable
  • Plug & play (HID): no drivers or setup required
  • Fast streaming: up to ~30 readings/sec*
  • TIR/Min/Max modes with single-key output
  • Spreadsheet helpers: cell targeting, row/column moves, date/time stamp
  • Host commands for automated requests
  • Data triggers: cable button or software/host command
  • USB-powered; works through standard USB hubs

*Device/model dependent.

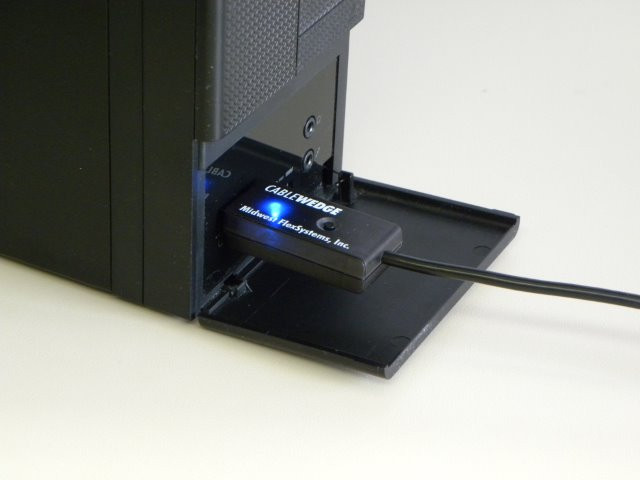

CableWedge-USB

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Availability: In stock

SKU Input type Price Qty
CW-05CZA625-06 Mitutoyo = Mitutoyo Digimatic and MTI Compatibles
$245.00
CW-05CZA663-06 Mitutoyo = Mitutoyo Digimatic and MTI Compatibles
$245.00
CW-1025-06 Federal Maxum
$245.00
CW-1035-06 Federal Maxum
$245.00
CW-1200-06 Ono Sokki EG225 BCD
$245.00
CW-1420-06 Starrett/CDI
$245.00
CW-905409-06 Mitutoyo = Mitutoyo Digimatic and MTI Compatibles
$245.00
CW-905692-06 Mitutoyo = Mitutoyo Digimatic and MTI Compatibles
$245.00
CW-959150-06 Mitutoyo = Mitutoyo Digimatic and MTI Compatibles
$245.00
CW-965012-06 Mitutoyo = Mitutoyo Digimatic and MTI Compatibles
$245.00
CW-965013-06 Mitutoyo = Mitutoyo Digimatic and MTI Compatibles
$245.00
CW-965014-06 Mitutoyo = Mitutoyo Digimatic and MTI Compatibles
$245.00

Product Description

Technical Data — CableWedge USB (Grouped)
Technical Data — CableWedge Gage Interface to USB (Grouped)
TechnologyUSB keyboard wedge (HID) + Virtual COM Port (VCP)
Use CaseSend gage readings directly into spreadsheets (HID) or SPC/data software that reads serial ports (VCP)
Number of Inputs1 digital gage input (per cable)
Input Types (by model)
  • Mitutoyo Digimatic/SPC: CW-959150-06, CW-905409-06, CW-05CZA625-06, CW-05CZA663-06, CW-965014-06, CW-965012-06, CW-905692-06, CW-965013-06
  • Ono Sokki: CW-1200-06
  • Starrett / CDI / Fowler: CW-1420-06
  • Mahr Federal: CW-1025-06, CW-1035-06
Outputs HID (keyboard): plug-and-play to any field/cell.
VCP (serial): enumerates as COM port for SPC/collection software; supports popular serial formats.
Trigger Methods Cable data button · Host commands/software control
PerformanceStream up to ~30 readings/second (device/model dependent)
Functions Min/Max/TIR · Continuous mode · Date/time stamp · Cell targeting and navigation (Tab/Enter/Up/Down) · EOF options (CR/Tab/line control)
PowerPowered via USB (works via standard USB hubs)
ConnectorsUSB Type-A to host; gage connector varies by model (see model list)
Cable LengthTypical 6 ft (models ending “-06”)
CompatibilityHID mode works without drivers on most OS; VCP mode uses standard USB-serial driver
Grouped SKUCW-USB (select the exact model for your gage)
ManufacturerMidwest FlexSystems Inc
NotesChoose the model that matches your gage/indicator family. Multiple CableWedge units can be used on one PC.

Additional Information

Name CableWedge-USB
SKU CableWedge-USB
Manufacturer Midwest FlexSystems Inc
Number of inputs 1
Output type USB (HID Keyboard), USB (Virtual COM Port)
Power Supply 110v Wall Adapter 7-9VDC Center Positive
Output Connector USB (HID or VCP) Type A
