Absolute Digimatic Caliper with Nib Style and Standard Jaws

Series 500

ABSOLUTE Digimatic Caliper — Nib Style & Standard Jaws

The Mitutoyo Digimatic caliper with standard upper jaws and nib-style lower jaws provides precise inside and outside measurements with an easy-to-read LCD display.

Features
  • Nib-style lower jaws with rounded faces for accurate inside measurements on rounded surfaces
  • Standard upper jaws for precise outside measurements — a highly versatile combo
  • ABSOLUTE (ABS) linear scale—no origin reset needed; overspeed errors eliminated
  • Functions: Origin Set, Zero-Setting, Data Output, inch/mm conversion (on in/mm models)
  • SPC output enables quick, real-time data capture
  • IP67 protection against dust and temporary water immersion
  • Corrosion-resistant, hardened stainless-steel construction
  • Supplied in a fitted plastic holster (450 mm / 18″ and larger in wooden case)

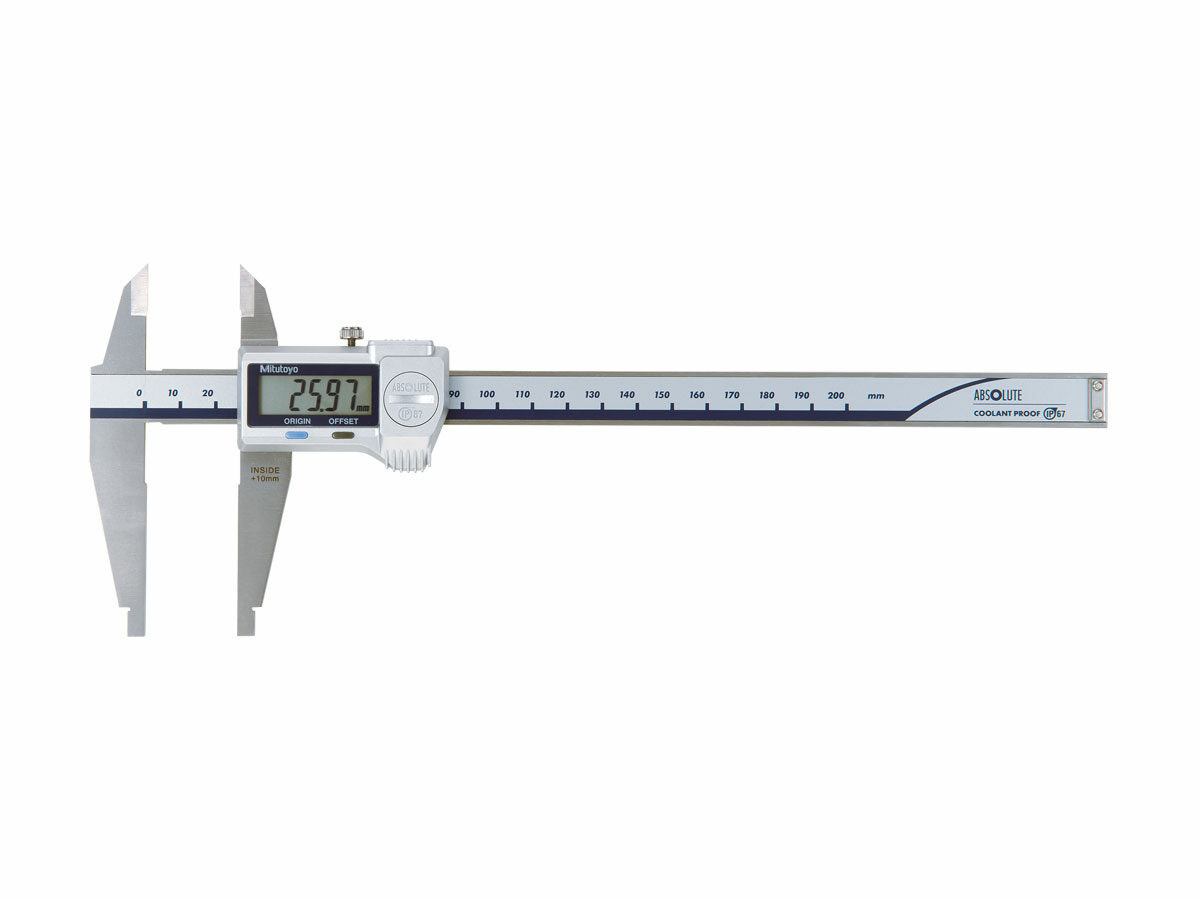

Absolute Digimatic Caliper with Nib Style and Standard Jaws

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Availability: In stock

SKU Units Range Resolution Accuracy Repeatability Mass Remarks Price Qty
551-204-10 — — 0.01mm ±0.06mm — 1060g —
$1,580.00
551-206-10 — — 0.01mm ±0.06mm — 1410g —
$2,570.00
551-207-10 — — 0.01mm ±0.07mm — 3430g —
$2,680.00
551-224-10 — — 0.01mm/0.0005" ±0.0025" — — —
$1,600.00
551-226-10 — — 0.01mm/0.0005" ±0.0025" — — —
$2,570.00
551-227-10 — — 0.01mm/0.0005" ±0.0030" — — —
$2,680.00
551-301-20 — — 0.01mm ±0.03mm — 180g —
$751.00
551-311-20 — — 0.01mm/0.0005" ±0.0015" — — —
$751.00
551-331-20 — — — ±0.04mm — 380g —
$1,080.00
551-341-20 — — 0.01mm/0.0005" ±0.0020" — — wth offset/preset function for easy ID measurement
$1,080.00

Product Description

Technical Data
SERIES 500 — ABSOLUTE Digimatic Caliper (Nib & Standard Jaws)
Technology: Digimatic
Length Standard: ABSOLUTE electromagnetic induction type linear encoder
Max Response Speed: Unlimited
Display: LCD
Units: Metric; Inch/Metric models available
Jaws: Standard upper jaws (OD), nib-style lower jaws (ID, rounded faces)
SPC Output: Yes
Functions: Origin Set, Zero-Setting, Data Output, inch/mm conversion (on in/mm models)
Alarms: Low Voltage; Counting Value Composition Error
IP Rating: IP67
Construction: Hardened, corrosion-resistant stainless steel
Battery: SR44 (1 pc.) 938882
Battery Life: Approx. 3.5 years under normal use
Notes: Unnecessary to wipe/clean the scale; fine-adjustment carriage type vernier variant available (Series 160).
Optional Accessories: 05CZA624, 05CZA625

Additional Information

Name Absolute Digimatic Caliper with Nib Style and Standard Jaws
SKU Absolute Digimatic Caliper with Nib Style and Standard Jaws
SPC output Yes
Manufacturer Mitutoyo
