Mitutoyo 572-311-10, Vertical Digimatic Scale Unit

Range: 0-6in, 0-150mm
Type: Horizontal
Accuracy: .001in
Resolution: .0005in, 0.01mm

ABSOLUTE Digimatic Scale Units Series 572 Features

  • The ORIGIN key allows setting of an absolute zero point to be used as reference in subsequent measurements. Once set, the ABS Digimatic Scale Unit is ready to show its true position whenever turned on rather than 0.00” as with standard models.
  • The ZERO/ABS key allows the display to be zero-set at any slider position along the beam for incremental comparison measurements. This key will also allow return to the absolute coordinate with a display of the true position from the origin point.
  • No rack, no pinion, no glass scale. Digimatic Scale Unit is safely embedded in the hardened stainless steel blade.
  • Horizontal or vertical face according to the scale mounting direction.
        Special type that is provided with diameter displaying function is available for lathes.
  • All units come with two mounting brackets, each located at either end of the scale.
  • With SPC data output.

Availability: In stock

Regular Price: $474.00

Special Price $426.60

OR

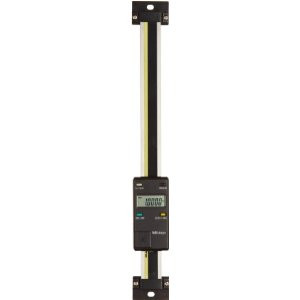

Mitutoyo 572-311-10, Vertical Digimatic Scale Unit

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Product Description

Technical Data
Accuracy: Refer to the list of specifications.
Resolution: 0.01mm or .0005"/0.01mm
Display: LCD
Length standard: ABSOLUTE electrostatic capacitance type
linear encoder
Max. response speed: Unlimited
Battery: SR44 (1 pc.), 938882
Battery life: Approx. 3.5 years under normal use

Function
Origin-set, Zero-setting, Power on/off, Presetting, Data hold,
Data output, inch/mm conversion (on inch/metric models only),
Counting direction switching*
Alarm: Low voltage, Counting value composition error
*not available for single function models

Optional Accessories
959143: Data hold unit for single function type
959149: SPC cable with data switch for single function type (40” / 1m)
959150: SPC cable with data switch for single function type (80” / 2m)
905338: SPC cable (40” / 1m standard)
905409: SPC cable (80” / 2m standard)
905689: SPC cable (40” / 1m L-shape, back)
905690: SPC cable (80” / 2m L-shape, back)
905691: SPC cable (40” / 1m L-shape, right)
905692: SPC cable (80” / 2m L-shape, right)
905693: SPC cable (40” / 1m L-shape, left)
905694: SPC cable (80” / 2m L-shape, left)

*Multi-function type
**Multi-function type with diameter displaying function for lathe
(Counting direction switching function is not provided)


Additional Information

Name Mitutoyo 572-311-10, Vertical Digimatic Scale Unit
SKU 572-311-10
UPC 603908258797
EAN 4946368128474
Weight (in lbs) 1
Manufacturer Mitutoyo
SPC output Yes
Gage Cable 959149
Measuring range 0-6in, 0-150mm
Resolution 0005in, 0.01mm
Accuracy .001in
Remarks vertical
