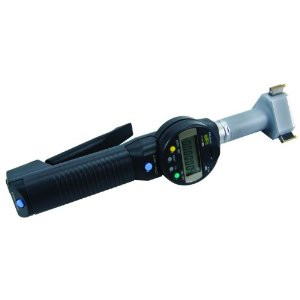

Mitutoyo 568-472 Borematic ABSOLUTE Digimatic Snap-Open Bore Gage

Technical Data
Accuracy: Refer to the list of specifications
Resolution: 0.001mm or .00005"/0.001mm
Contact point: Carbide or titanium coating* (*over 12mm/.5" models)
Measuring method: Three-point method
Display: LCD
Battery: SR44 (1 pc.) (938882)
Battery life: Approx. 7,000 hours

Functions
Zero-Set, presetting, GO/NO-GO judgment, power on/off,
inch/mm conversion (inch/mm type only), SPC data output, data hold

Optional Accessories
905338: SPC cable (1m / 40”)
905409: SPC cable (2m / 80”)
952322: Extension rod 100mm / 3.94” For range 6-12mm / .275-.5” models
952621: Extension rod 150mm / 5.9” For range 12-20mm / .5" - .8” models
952622: Extension rod 150mm / 5.9” For range 20-50mm / .8" - 2” models
952623: Extension rod 150mm / 5.9” For range 50-300mm / 2"-12” models

The Mitutoyo 568-463 Borematic LCD Bore Gauge has a measurement range of 0.425 to 0.5" and is accurate to + or - 0.00025". The absolute linear encoder helps reduce error, and the LCD screen offers quick and error-free measurement reading with a 330-degree rotatable unit. Three-point contact system detects lobing or triangular form error and TiN-coated contact points provide durability and impact resistance. Gradient spacing is 0.00005". The gauge has SPC data output for recording and storing measurements on a computer as well as a GO/NO-GO judgment function. Origin point is quickly set with an origin button and the gauge retains this setting for the entire battery life.

Bore gauges measure holes, or bores, in a workpiece. They can measure the interior diameter of a hole at any depth, while internal micrometers can only measure to the depth of their teeth. Bore gauges are typically calibrated with a setting ring and come in two types: simple and direct-measuring. Simple bore gauges are used with a caliper to transfer the hole measurement, while the more complex gauges take the measurement directly, and display it through a vernier, dial, or digital display. Bore gauges have a two- or three-point contact, indicating how many points on the gauge head touch the inside of the bore. Two-point contacts are better at measuring ovality, while three-point contacts are used to measure lobing or triangular form error. Pistol-grip bore gauges are used for fast, single-handed operation with repeatable results from one operator to another. Bore gauges can also be used in special applications, such as measuring threads, spline pitch diameters, and deep bores.
