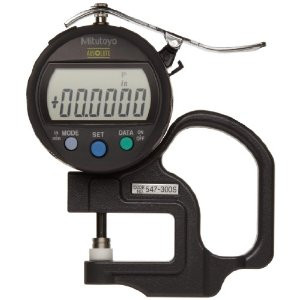

Mitutoyo 547-300S ID-C Digimatic ABSOLUTE Thickness Gage, Flat Anvil, Standard Type

• The Thickness Gages offer a quick and efficient means of inspection with their convenient grip handle, thumb trigger and spring-loaded spindle. The various models cover a wide range of applications.
• 547-400S is ideally suited for measuring thicknesses of paper, film, wire, sheet metal and similar materials.
• Wide range of applications with various types of measuring faces (on the spindle and anvil).
• The digital models incorporate Mitutoyo's popular ID-C and ID-S Series Digimatic Indicators to provide error-free LCD readings as well as data output for SPC analysis.

Technical Data
Function of Digital Models

IDS Types

• ON/OFF
• Inch/mm Conversion
• Origin
• ±Direction Changeover
• SPC Output
• Battery Life:20,000 hrs
• Power Supply:Silver Oxide Cell (SR-44 1pc.)

IDC Types

• ON/OFF
• Inch/mm Conversion
• Zero/ABS
• ±Direction Changeover
• SPC Output
• Battery Life:5,000 hrs
• Power Supply:Silver Oxide Cell(SR-44 1pc.)
• Preset
• Provides GO/±NG Judgment
• Face Rotates 330°

Optional Accessories

905338: SPC cable (40" / 1m) for digital type
905409: SPC cable (80" / 2m) for digital type
902794: Spindle lifting lever for IDS digimatic type (stroke .5" / 12.7mm)
21AZB149: Spindle lifting lever for digimatic and dial thickness gage (stroke .5" / 12.7mm)
21AZB150: Spindle lifting lever for dial indicator (stroke 1" / 25.4mm)
