Product Description
FEATURES

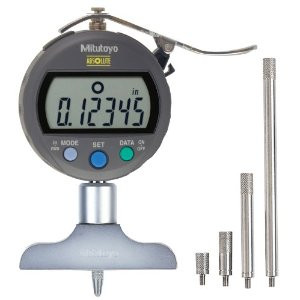

- ABSOLUTE Digimatic Depth Gage can keep track of the origin point once set for the entire life of the battery.
- Wide probing range is available with the supplied extension rod.
- Bottom surface of the base is hardened, ground and lapped for highest degree of flatness.
- With SPC data output.
Technical Data
Accuracy: Refer to the list of specifications.(excluding quantizing error for digital models)
Resolution*: 0.001mm, 0.01mm, .00005"/0.001mm or .0005”/0.01mm
Flatness of base face: 5µm
Measuring force: 1.4N, 1.5N
Display: LCD
Battery: SR44 (1 pc.), 938882
Battery life: Approx. 3.5 years under normal use
Function
Origin-set, Zero-setting,Data output, inch/mm conversion (inch/mm models)
Alarm: Low voltage, Counting value composition error
Optional Accessories
905338: SPC cable (40” / 1m)
905409: SPC cable (80” / 2m)
64AAA016: SPC cable (9ft / 3m)
64AAA017: SPC cable (15ft / 5m)
139167: .5” Extension Rod
301655: 1” Extension Rod
301657: 2” Extension Rod
301659: 4” Extension Rod
303611: 10mm Extension Rod
303612: 20mm Extension Rod
303613: 30mm Extension Rod
303614: 100mm Extension Rod
Base Only(3/8in dia.hole)
902164: 2.5in 7217,7237,547-217S,547-257S
902165: 4in7218S,7238,547-218S,547-258S
Accuracy: Refer to the list of specifications.(excluding quantizing error for digital models)
Resolution*: 0.001mm, 0.01mm, .00005"/0.001mm or .0005”/0.01mm
Flatness of base face: 5µm
Measuring force: 1.4N, 1.5N
Display: LCD
Battery: SR44 (1 pc.), 938882
Battery life: Approx. 3.5 years under normal use
Function
Origin-set, Zero-setting,Data output, inch/mm conversion (inch/mm models)
Alarm: Low voltage, Counting value composition error
Optional Accessories
905338: SPC cable (40” / 1m)
905409: SPC cable (80” / 2m)
64AAA016: SPC cable (9ft / 3m)
64AAA017: SPC cable (15ft / 5m)
139167: .5” Extension Rod
301655: 1” Extension Rod
301657: 2” Extension Rod
301659: 4” Extension Rod
303611: 10mm Extension Rod
303612: 20mm Extension Rod
303613: 30mm Extension Rod
303614: 100mm Extension Rod
Base Only(3/8in dia.hole)
902164: 2.5in 7217,7237,547-217S,547-257S
902165: 4in7218S,7238,547-218S,547-258S
We Also Recommend
You may also be interested in the following product(s)
C-905409-06 Mitutoyo Gage Cable 80"/2m
$82.20
|
C-905338-03 Mitutoyo Gage Cable 40"/1m
$69.00
|
Mitutoyo 547 Series - ABSOLUTE Digimatic Depth GageFrom: $625.00 To: $1,107.20 |
Additional Information
| Name | Mitutoyo 547-257A ABSOLUTE Digimatic LCD Depth Gauge, Indicator Type |
|---|---|
| SKU | 547-257A |
| UPC | 603908515234 |
| EAN | 4946368599465, 0603908515234 |
| Weight (in lbs) | 1.1 |
| Manufacturer | Mitutoyo |
| SPC output | Yes |
| Resolution | 0.00005"/0.001mm |
| Accuracy | +/-0.0003" |
| Measuring range | 0-8"/0-200mm |
