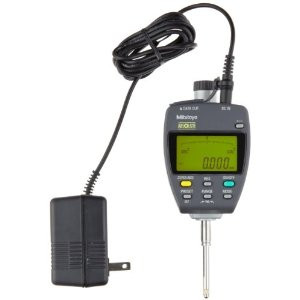

Mitutoyo 543-551A ID-F ABSOLUTE Digimatic Indicator, With SPC Output, With Back-Lit LCD Screen

543 Series - With Back-Lit LCD Screen

FEATURES

• With the ABSOLUTE Linear Encoder technology, once the measurement reference point has been preset it will not be lost when the power is turned on.
• GO/±NG judgment is performed by setting the upper and lower tolerances. If a judgment result is out of tolerance, the display backlighting changes from green to red, so tolerance judgment can be made at a glance.
• An analog bar indicator has been integrated to handle upper/lower limit approaching and zero approaching. It enhances the ease of operation in the same manner as a dial indicator. The display range of the analog bar can be changed.
• With SPC data output.

Technical Data
Accuracy: Refer to the list of specifications.
Resolution: 0.01mm/0.001mm or .00005”/.0001”/.0005”/.001”/0.001mm/0.01mm
Display: LCD
Length standard: ABSOLUTE electrostatic capacitance type linear encoder
Max. response speed: Unlimited
Measuring force: 1.8N/2.3N* or less (*50mm range models)
Power supply: 9V DC (via AC adaptor)

Function
Origin-set/Preset, Zeroset, GO/±NG judgment, Max/Min value
hold, Runout measurement, Resolution switching, Counting
direction switching, Power ON/OFF, Data output,
inch/mm conversion (on inch/metric models only)
Alarm: Low voltage, Counting value composition error,
Over-flow error, Tolerance limit setting error

Standard Accessories
06AEG180JA: AC Adapter 120v
137693: Lifting Lever

Optional Accessories
936937: SPC cable (40” / 1m)
965014: SPC cable (80” / 2m)
540774: Spindle lifting cable (stroke: .4” / 10mm)
02ACA571: Auxiliary spindle spring for 25mm/1” models*
02ACA773: Auxiliary spindle spring for 50mm/2” models*
264-504-5A: Digimatic Min-processor DP-1VR
543-004-1: Digimatic presetter
