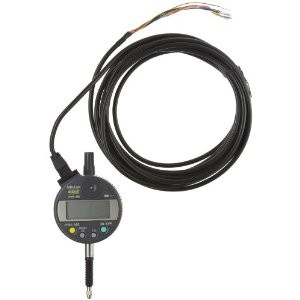

Mitutoyo 543-350B ABSOLUTE Digimatic Indicator with SPC output, Green/Red LED GO/NG Signal, ID-C Metric

• With the max./min. value holding function, the signal ID-C can output the signal of the GO/±NG judgment result against the peak values set. Substitute for the mechanical/electrical contact, the judgment is carried out by calculating the measurement data obtained. This provides high reliability with no deterioration of the contact point and volume adjustment.
• The signal can be output to an external device like a sequencer through the NPN open-collector.
• The GO/±NG judgment result is also indicated by the green/red LED and the "<, O, >" signs on LCD.
• Employing the ABSOLUTE linear encoder, the Signal ID-C always displays the spindle "Absolute Position" from the origin at power-on.
• The Signal ID-C achieves the IP54 protection level to resist dust and contaminants for safe operation in harsh machine shop environments.

Technical Data
Accuracy: Refer to the list of specifications.
Resolution: 0.001mm, .00005”/0.001mm or .0001”/0.001mm
Display: LCD
Length standard: ABSOLUTE electrostatic capacitance type linear encoder
Max. response speed: Unlimited
Measuring force: 2.5N or less
Power supply: DC 12 - 24V±10%
Dust/Water protection level: IP54

Function
Data output (–NG/OK/NG signal, NPN open collector), Remote control (hold-preset, preset-recall, zero-set), Origin-
set/Preset, Zeroset, GO/±NG judgment, Max/Min/Runout value holding, Counting direction switching, Power
ON/OFF, inch/mm conversion (on inch/metric models only)
Alarm: Low voltage, Counting value composition error, Over-flow error, Tolerance limit setting error

Optional Accessories
902011: Spindle lifting lever* (ISO/JIS type)
902794: Spindle lifting lever* (ANSI/AGD type)
540774: Spindle lifting cable* (Stroke: .4” / 10mm)
125317: Rubber boot
*When using the spindle lifting lever/cable, IP54 is not guaranteed.
