Product Description
Technical Data
Applicable gage: LGD, LGS, All SPC output gages
Resolution: .00005"/.0001"/0.001mm, .0005"/.001"/0.01mm
No. of gage input: 1
Display: 6-digit LED and a negative [-] sign
Function: Preset GO/±NG judgment
Output (open-collector): 3-step limit signal, Normal signal
External control: Preset, Data hold
Power supply: Via AC adaptor
Dimensions (W x D x H): 96 x 48 x 84.6mm
Mass:50g
Applicable gage: LGD, LGS, All SPC output gages
Resolution: .00005"/.0001"/0.001mm, .0005"/.001"/0.01mm
No. of gage input: 1
Display: 6-digit LED and a negative [-] sign
Function: Preset GO/±NG judgment
Output (open-collector): 3-step limit signal, Normal signal
External control: Preset, Data hold
Power supply: Via AC adaptor
Dimensions (W x D x H): 96 x 48 x 84.6mm
Mass:50g
Standard Accessory
06AEG302JA:AC Adapter
06AEG302JA:AC Adapter

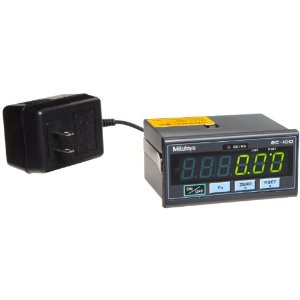

Mitutoyo Single Axis Digimatic Display, Use With: LDG & LGS Linear Gages and Digimatic Output Tools
Additional Information
| Name | Mitutoyo 542-007A, Digimatic Display Single Axis, For LDG & LGS Linear Gages and Digimatic Output Tools |
|---|---|
| SKU | 542-007A |
| UPC | 603908391081 |
| EAN | 0603908391081, 4946368524528 |
| Weight (in lbs) | 1.7 |
| Manufacturer | Mitutoyo |
| SPC output | Yes |
| Resolution | .001”, .0005”, .0001”, .00005” / 0.01mm, 0.001mm (Automatically set depending on the gage.) |
