Mitutoyo Digimatic Micrometer Series 293 MDC-Lite

  • Provided only with a zero-set key for easy origin setting.
  • A ratchet stop or friction thimble for a constant measuring force.
  • Measurement readout with large characters on the LCD screen.
  • No spindle clamp. No data output
  • Supplied in fitted plastic case

Find your item in the drop-down menu or table below.

Availability: Out of stock

From: $0.00

To: $7.43

Price as configured: $0.00

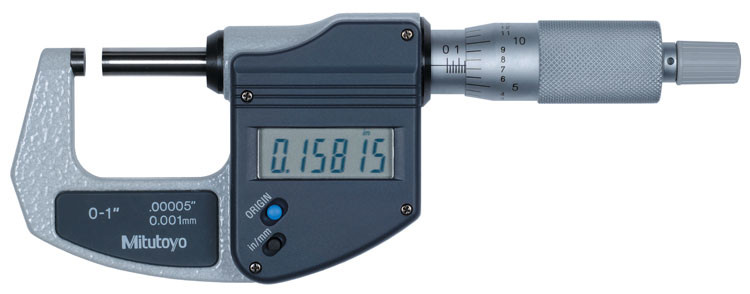

Series 293 Digimatic Micrometers

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Product Description

SPECIFICATIONS:

Inch/Metric
Order No.
Range Accuracy Remarks
293-831 0-1in 0-25.4mm
±.0001in 2µm with ratchet stop
293-832 0-1in 0-25.4mm
±.0001in 2µm with friction stop


Technical Data
Accuracy: Refer to the list of specifications.
Resolution: 0.001mm or .00005"/0.001mm
Flatness: 0.3µm / .000012”
Parallelism: 2µm / .00008”
Measuring faces: Carbide tipped
Display: LCD
Battery: SR44 (1 pc.), 938882
Battery life: Approx. 1.2 years under normal use

Function
Origin-set, Automatic power on/off, inch/mm conversion
(inch/mm models)
Alarm: Low voltage, Counting value composition error

Additional Information

Name Mitutoyo Digimatic Micrometer Series 293 MDC-Lite
SKU 293-MDC-Lite
Accuracy ±.0001in 2µm
Manufacturer Mitutoyo
