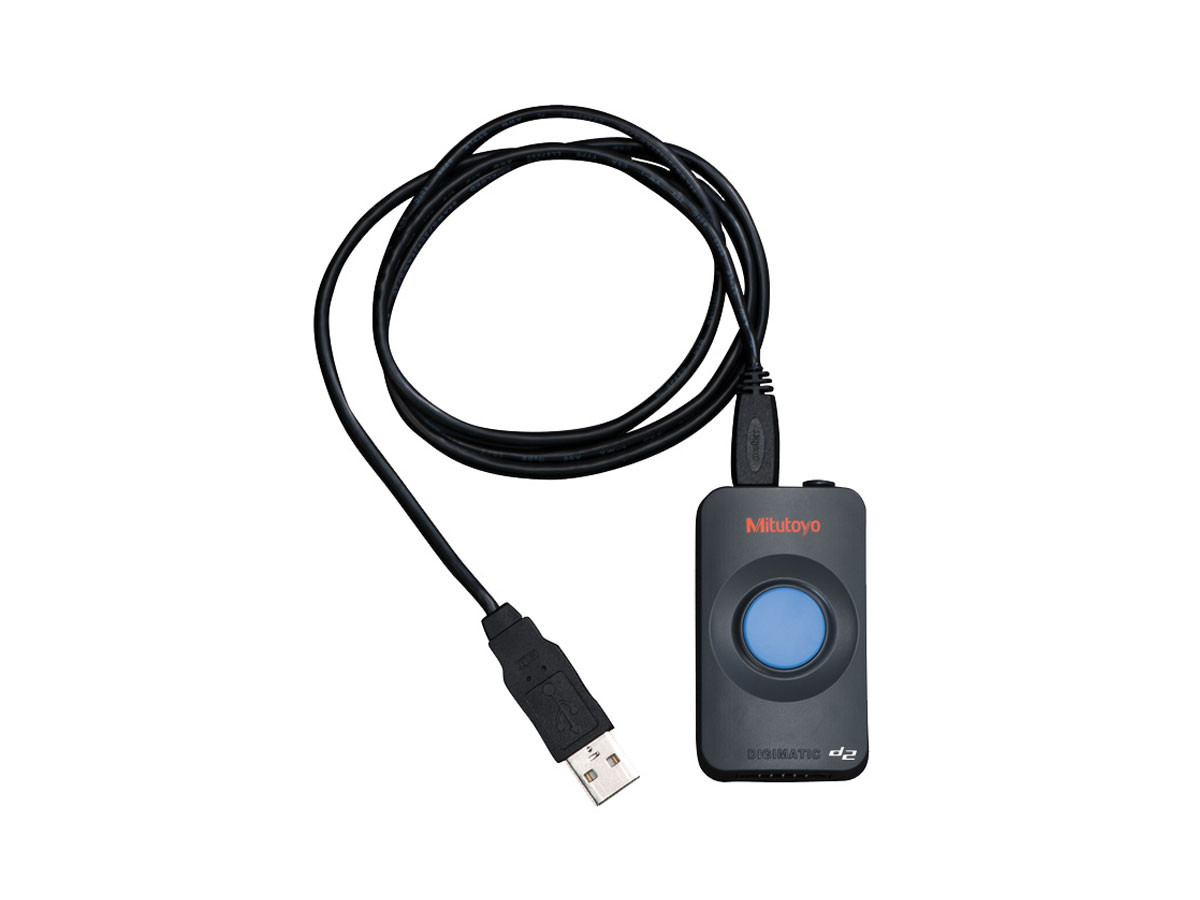

Mitutoyo 264-020, Input Tool to USB

264-020

Mitutoyo Input Tool to USB (IT-016U)

Plug one Mitutoyo Digimatic tool directly into a PC and send readings to spreadsheets via USB (keyboard emulation). Simple, reliable, and designed to eliminate transcription errors.

Features
  • 1× Mitutoyo Digimatic input (SPC)
  • USB HID keyboard output — sends readings straight into Excel and other apps
  • Trigger options: tool’s data switch, button on the Input Tool, or optional footswitch
  • Bus-powered via USB (no external power)
  • Plug-and-play on laptops/desktops; no special software required for basic entry
  • Helps eliminate manual re-typing and data entry mistakes

Availability: In stock

$249.00
OR

Mitutoyo 264-020, Input Tool to USB

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Product Description

Technical Data — Mitutoyo 264-020
Technical Data — Mitutoyo 264-020 Input Tool to USB
Model / Alias264-020 (IT-016U)
FunctionConverts Mitutoyo Digimatic (SPC) readings to USB HID keyboard input
Number of Inputs1
Input TypeMitutoyo Digimatic (SPC)
OutputUSB (HID keyboard emulation) — data appears where the cursor is, e.g., Excel cells
Trigger MethodsTool’s data switch · Button on Input Tool · Optional footswitch
PowerBus-powered via USB (no external supply)
Primary UseDirectly populate spreadsheets and forms; reduce errors from manual typing
PC CompatibilityWorks with standard USB ports on laptops/desktops; no special software required for basic HID entry
SKU264-020
UPC / EAN603908272229 · 4946368065137 · 0603908272229
Weight~0.35 lb
ManufacturerMitutoyo
NotesIdeal for single-tool stations; add an optional footswitch for hands-free capture

Additional Information

Name Mitutoyo 264-020, Input Tool to USB
SKU 264-020
UPC 603908272229
EAN 4946368065137, 0603908272229
Weight (in lbs) 0.35
Manufacturer Mitutoyo
Number of inputs 1
Input type Digimatic
Output type USB
Power Supply Powered via USB port
